System Inspection
■ Visual Check
1.

Inspect visually/physically the following items:

▶ Air cleaner filter element for excessive dirt or any foreign objects

▶ Intake system restriction

▶ Exhaust system restriction

▶ Engine mechanical problem

▶ Sludged throttle body

2.

Have any problems been found?

▶ Repair as necessary and go to "Resetting Adaptive Values" procedure.

▶ Clear DTC and Test-drive under enable conditions above-mentioned. After the test, If this DTC is set, go to "Resetting Adaptive Values" procedure. If not, troubleshooting is completed.

■ Resetting Adaptive Values
1.

Connect GDS to DLC(Data Link Cable).

2.

IG "ON" & ENG "OFF".

3.

Select the "Vehicle S/W Management" about related DTC with GDS.

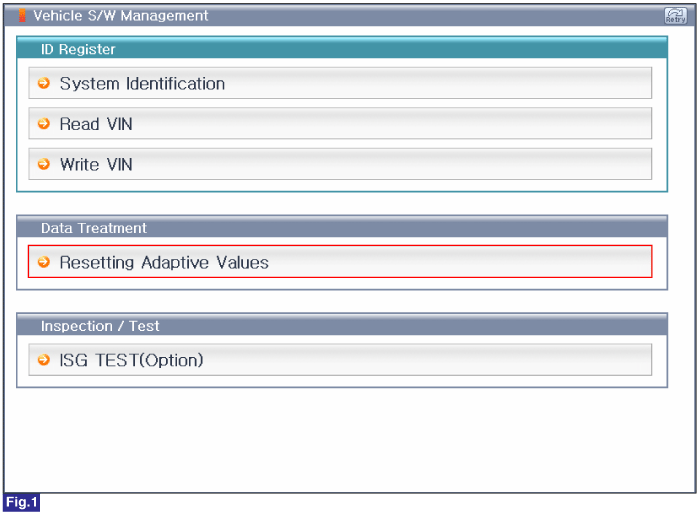

Fig.1) Select "Resetting Adaptive Values" for resetting TPS values.

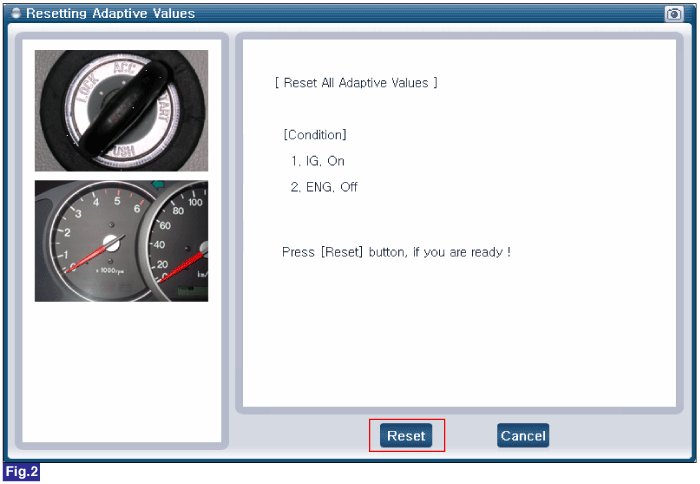

Fig.2) Press "Reset" button to progress for next procedure.

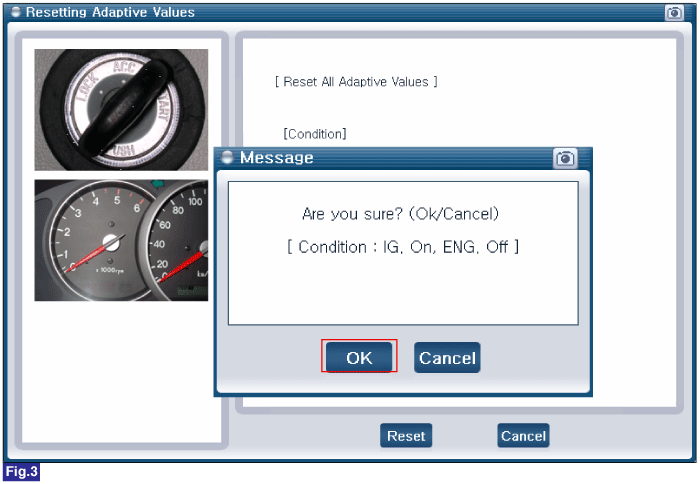

Fig.3) Press "OK" button(IG ON, ENG OFF).

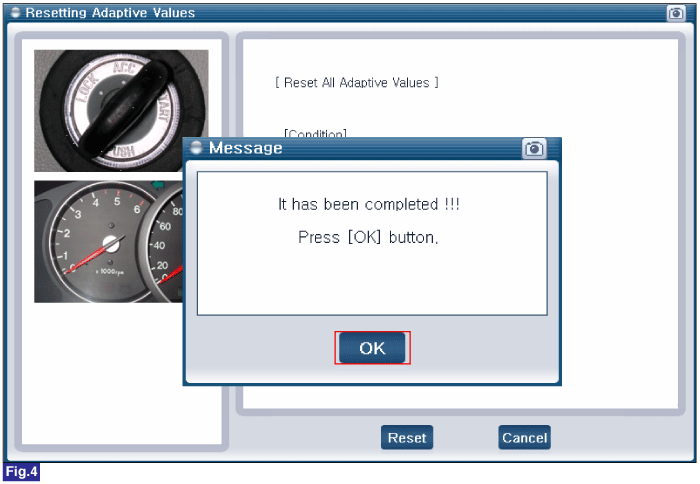

Fig.4) Completed.

4.

When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "Verification of Vehicle Repair" procedure.
