Specification

Item

Specification

ETC Motor Coil Resistance (Ω)

Approx. 2 ~ 3Ω [20°C(68 °F)]

Signal Waveform & Data

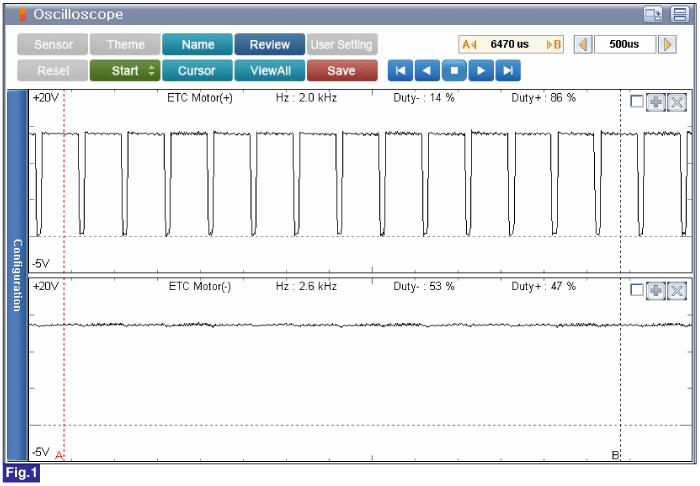

Fig.1) Engine Idle after Warm Up

ETC Moter(+) → Duty(+) Approx. 86%

Duty(-) Approx. 14%

ETC Moter(-) → Not in Control

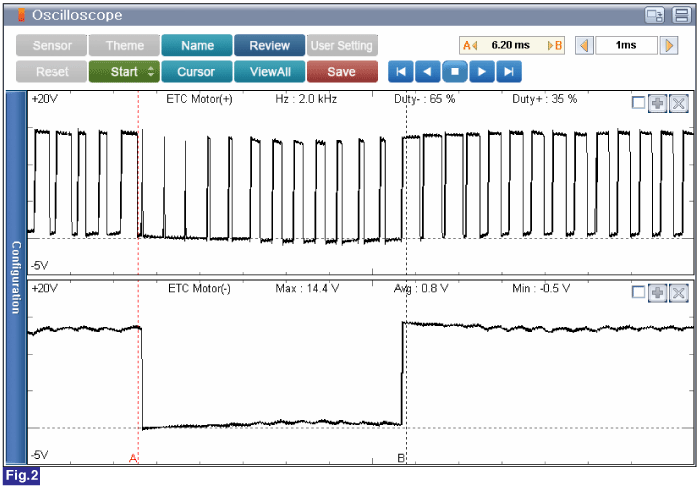

Fig.2) Waveform of ETC Motor operation immediate when engine accelerating.
