3.
Perform "Actuation Test" for CVVT Exhaust.

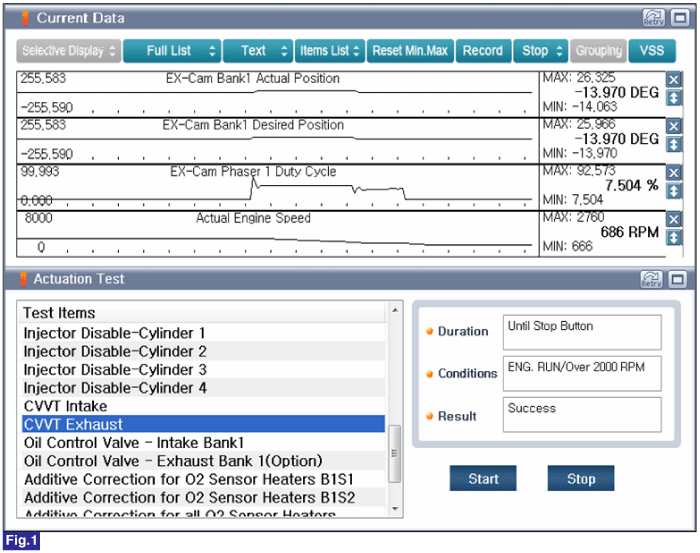

Fig.1) CVVT Exhaust Actuation Test
Connect GDS to Data Link Connector(DLC).
Ignition "ON" & Engine "ON"
Perform "Actuation Test" for CVVT Exhaust.
Fig.1) CVVT Exhaust Actuation Test
Does the CVVT operate properly? (Check variation)
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace CVVT and then go to "Verification of Vechicle Repair" procedure. |
