1. Reservoir tank

2. Radiator reservoir hose

3. Side air guard

4. A/C condenser

5. Radiator

6. Cooling fan

7. Radiator cap

8. Radiator upper hose

9. Radiator lower hose

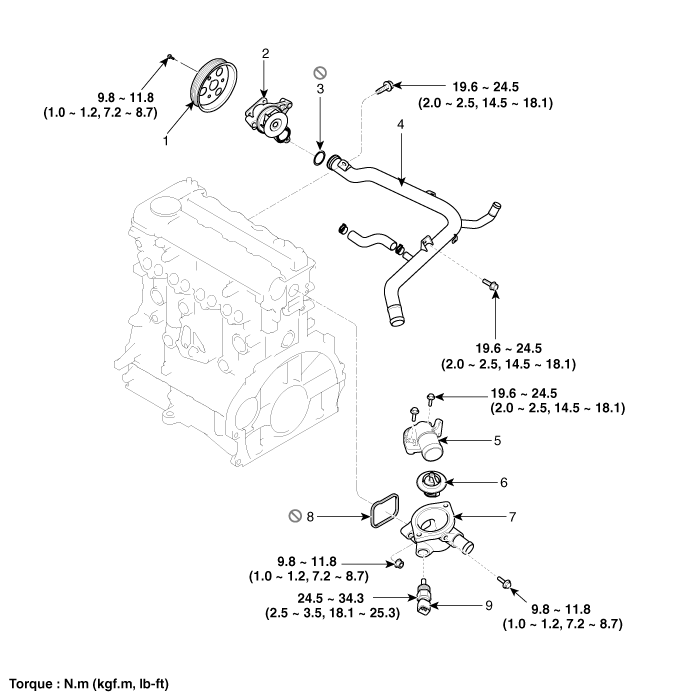

1. Water pump pulley

2. Water pump

3. Water pump O-ring

4. Water return pipe assembly

5. Thermostat cover

6. Thermostat assembly

7. Thermostat housing

8. Thermostat housing gasket

9. Engine coolant temperature sensor (ECTS)
