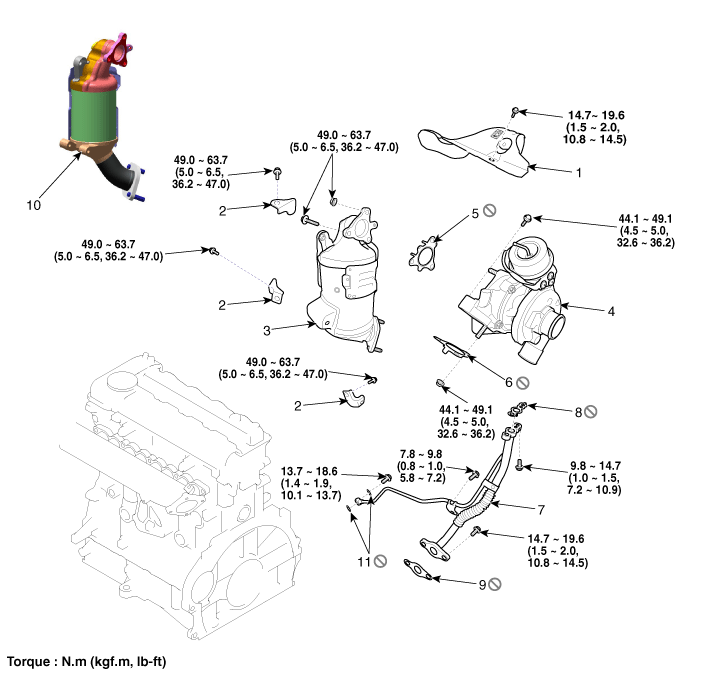

1.  Heat protector

2.  DPF converter bracket

3.  DPF converter

4.  Turbocharger (VGT)

5.  Turbocharger outlet gasket

6.  Turbocharger inlet gasket

7.  Oil Feed pipe & return pipe

8. Turbo charger oil return gasket

9. Oil return pipe gasket

10. WCC converter

11. Gasket

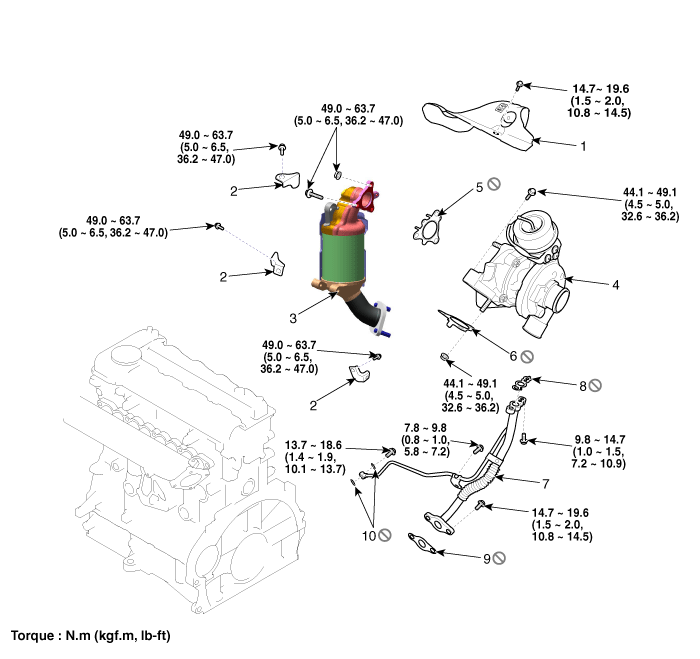

1.  Heat protector

2.  WCC converter bracket

3.  WCC converter

4.  Turbocharger (VGT)

5.  Turbocharger outlet gasket

6.  Turbocharger inlet gasket

7.  Oil Feed pipe & return pipe

8. Turbo charger oil return gasket

9. Oil return pipe gasket

10. Gasket

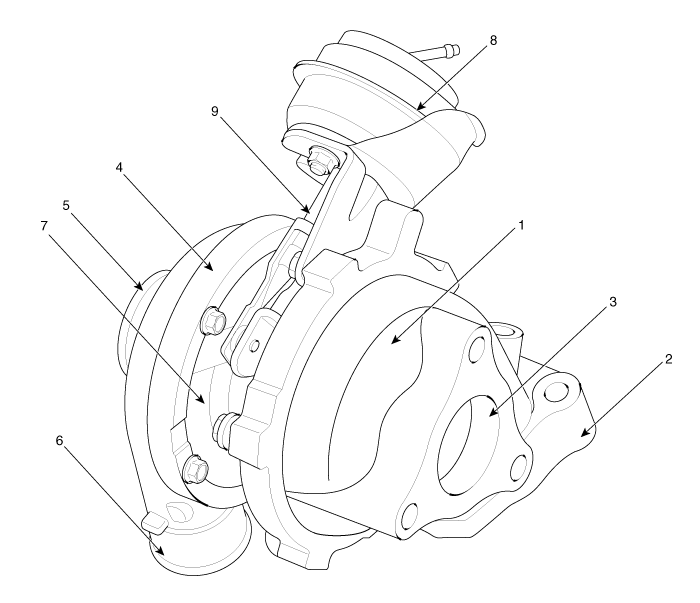

1. Turbine housing

2. Turbine inlet

3. Turbine outlet

4. Compressor housing

5. Compressor inlet

6. Compressor outlet

7. Center housing

8. Actuator

9. Actuator rod
