1. PCV valve
2. Canister
3. Purge control solenoid valve (PCSV)
4. Fuel tank air filter
5. Catalytic converter (WCC)
5. Catalytic converter (UCC)

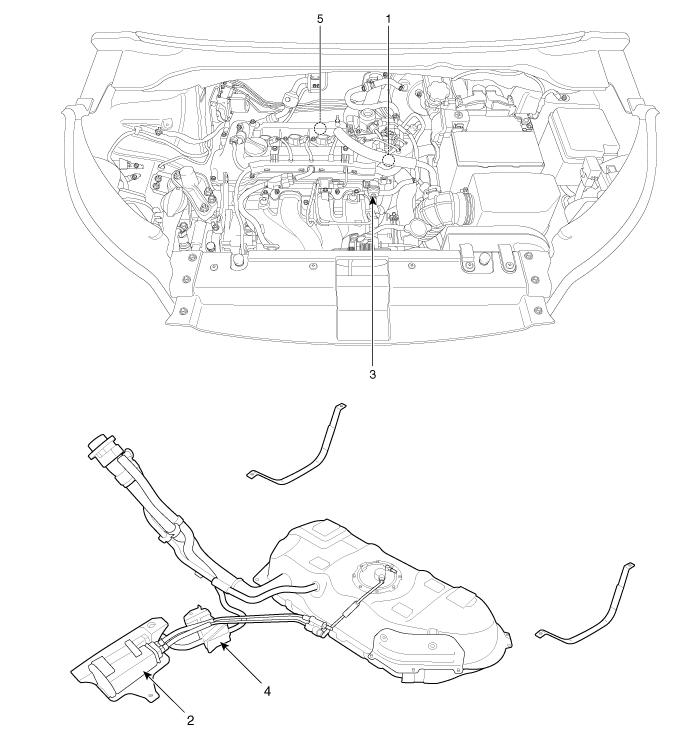

1. PCV valve 2. Canister 3. Purge control solenoid valve (PCSV) | 4. Fuel tank air filter 5. Catalytic converter (WCC + UCC) |
1. PCV valve | 2. Canister |
| |
3. Purge control solenoid valve (PCSV) | 4. Fuel tank air filter |
| |
5. Catalytic converter (WCC) | 5. Catalytic converter (UCC) |
| |
