Components Location

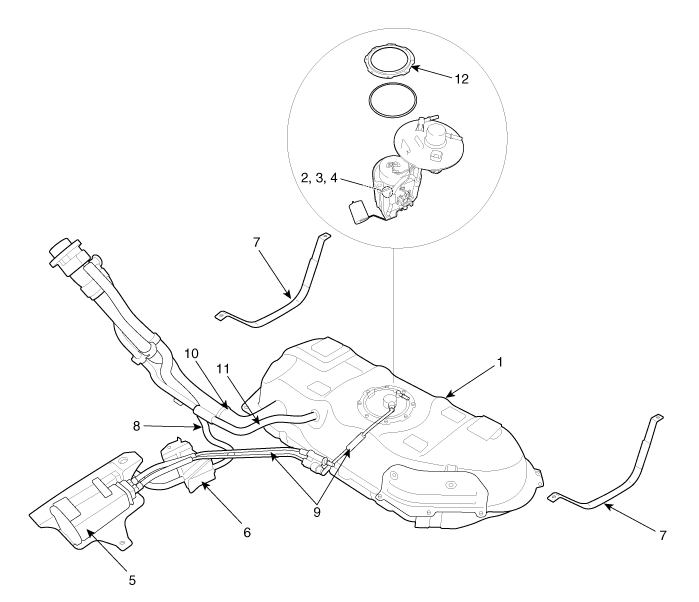

[Fuel Tank]

1. Fuel Tank

2. Fuel Pump

3. Fuel Filter

4. Fuel Pressure Regulator

5. Canister

6. Fuel Tank Air Filter

7. Fuel Tank Band

8. Ventilation Hose

9. Vapor Tube

10. Fuel Filler Hose

11. Leveling Hose

12. Fuel Pump Plate Cover

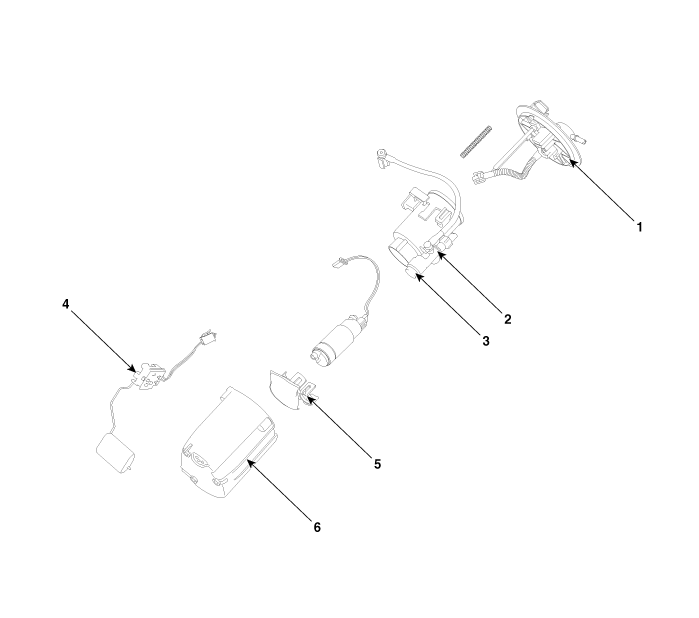

[Fuel Pump Assembly]

1. Head Assembly

2. Fuel Filter

3. Fuel Pressure Regulator

4. Fuel Pump Motor

5. Pre-filter

6. Reservoir-cup

7. Fuel Sender
