Component Location

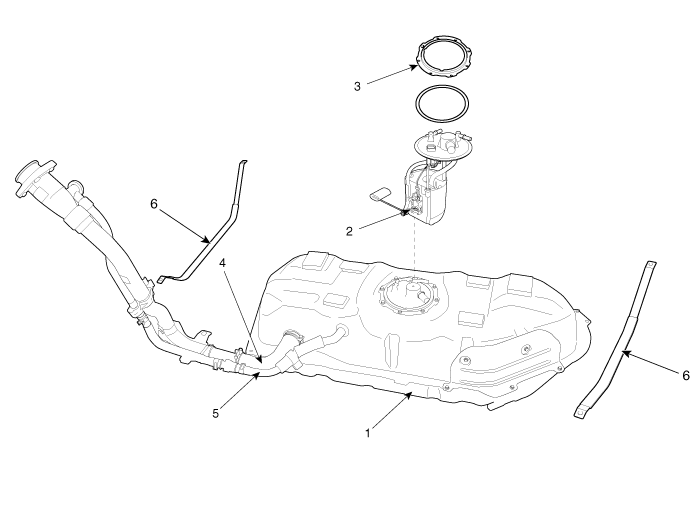

Section (I) - Fuel Tank

1. Fuel tank

2. Fuel sender

3. Fuel sender plate cover

4. fuel filler hose

5. Leveling hose

6. Fuel tank band

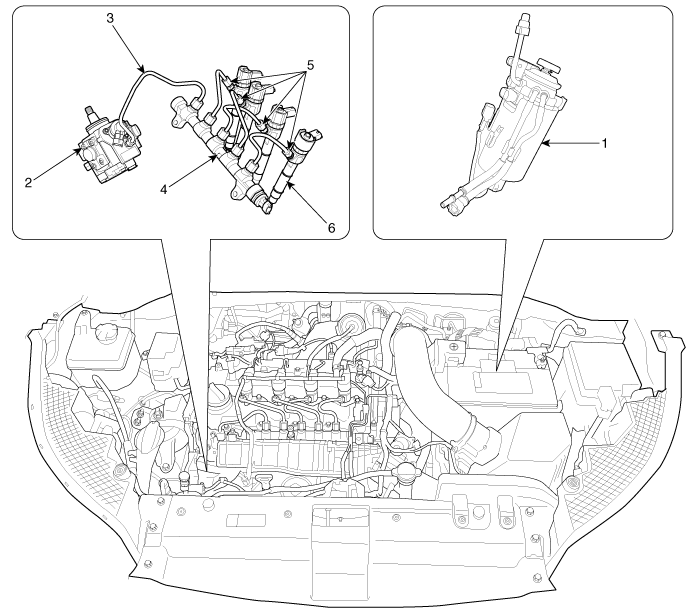

Section (II) - Engine Room

1. Fuel filter

2. High pressure fuel pump

3. High pressure fuel pipe (High pressure fuel pump ↔ Common rail)

4.Common rail

5. High pressure fuel pipe (Injector ↔ Common rail)

6. Injector

caution
●

Common Rail Fuel Injection System operates with extremely high pressure [approximately 1,600bar (160 MPa / 23,206 psi)], so never perform any work on injection system with engine running or within 30 seconds after the engine stops.

●

Keep cleanly the parts and the working area.

●

Pay attention to a foreign substance.

●

Just before installing injector, tube or hose, remove the protect-cap attached on them.

●

Do not remove injector except for special case.

●

When installing Injector

-

Wash the contact area of the injector and replace the O-ring with a new one.

-

Spread oil on the injector O-ring.

-

To protect damage caused by shock, vertically insert the injector into the cylinder head.

●

When installing High Pressure Fuel Pipe

-

Do not use again the used high pressure fuel pipe.

-

Install the flange nut correctly.
