Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:

1.

Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

2.

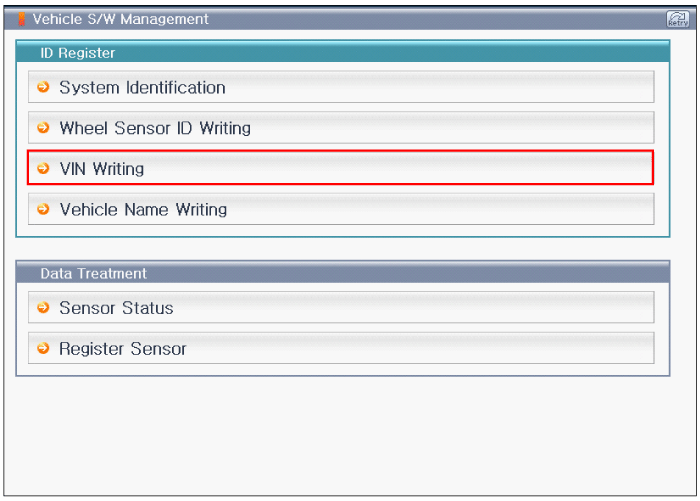

Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

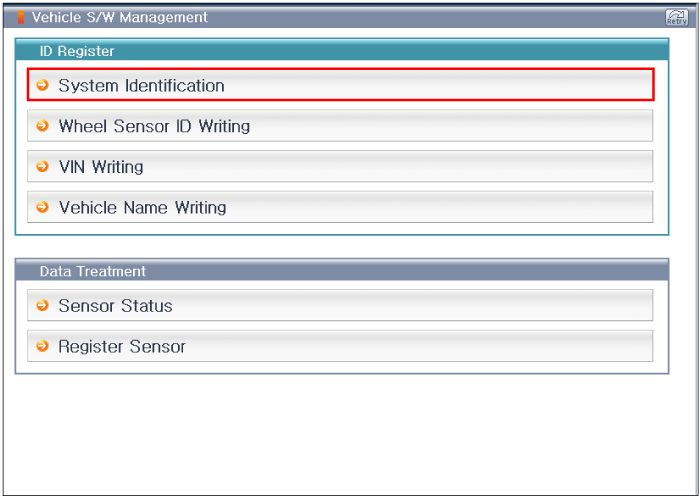

[System Identification (Wireless)]

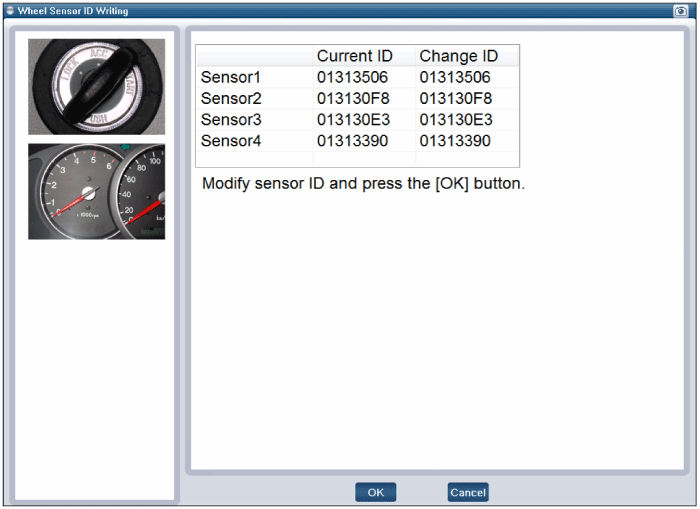

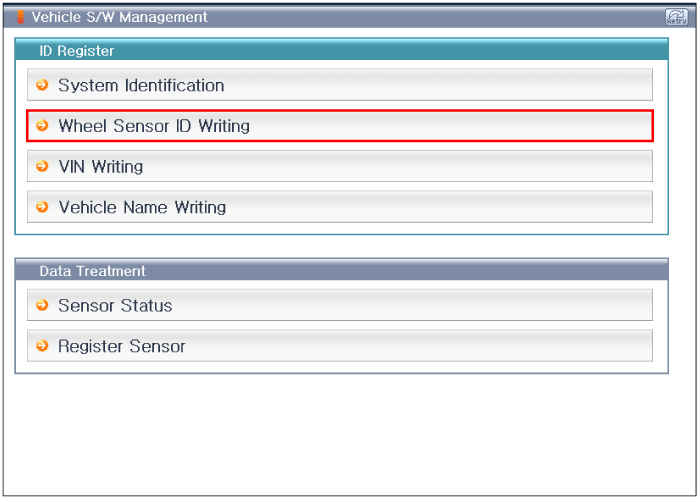

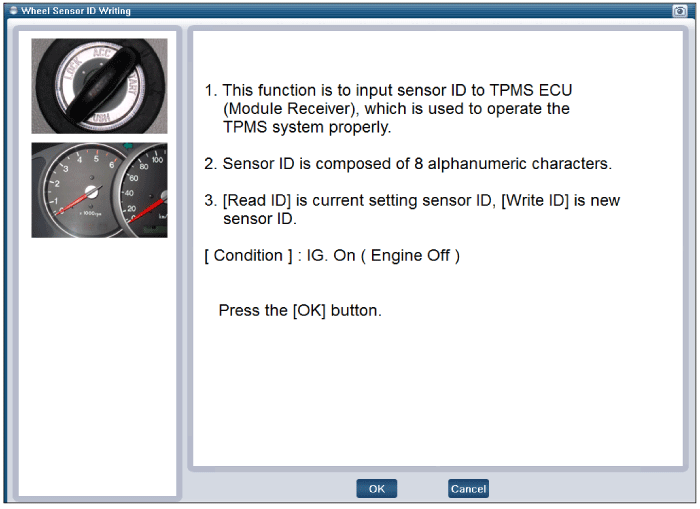

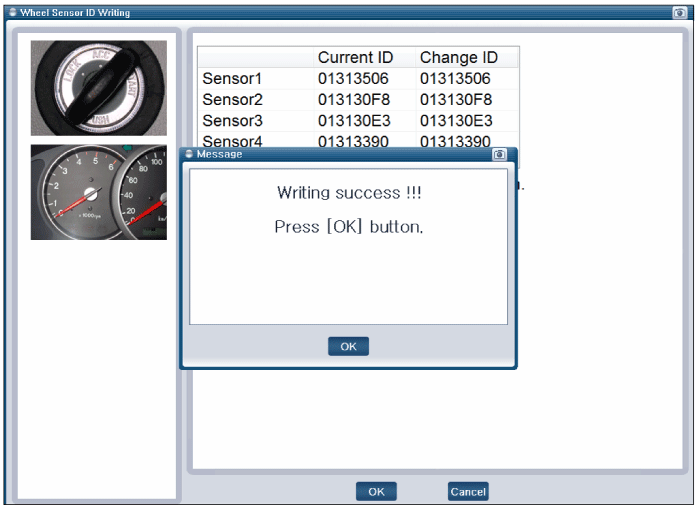

[Sensor ID Writing (Wireless)]

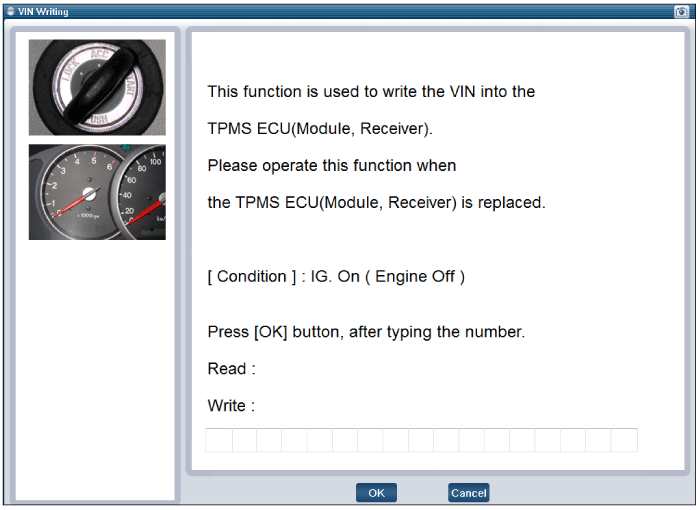

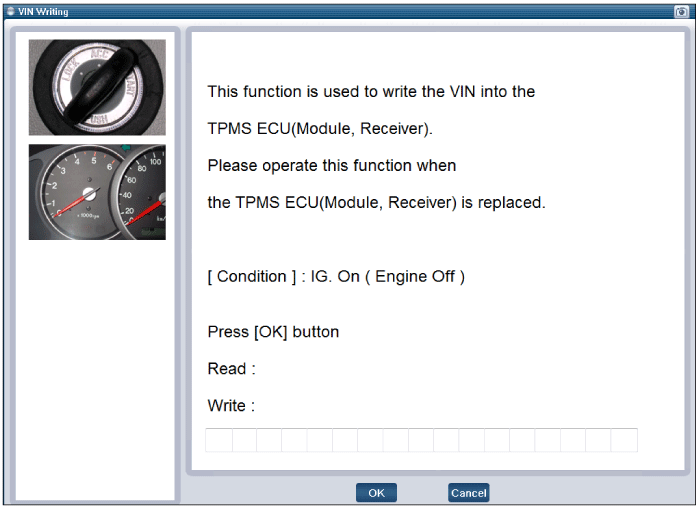

[VIN input initialization]

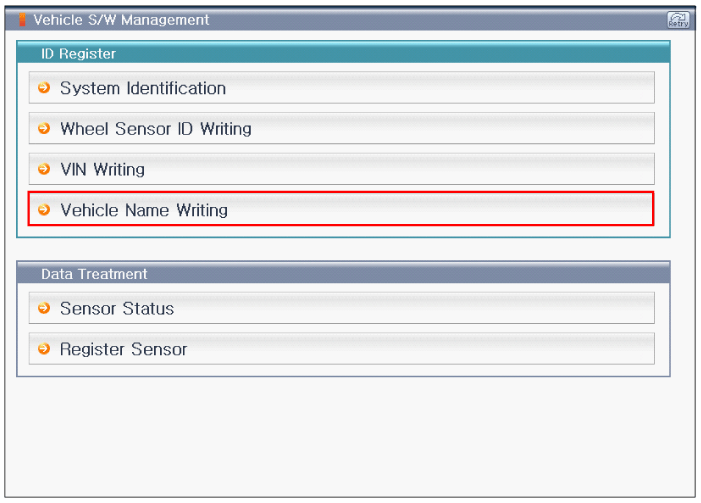

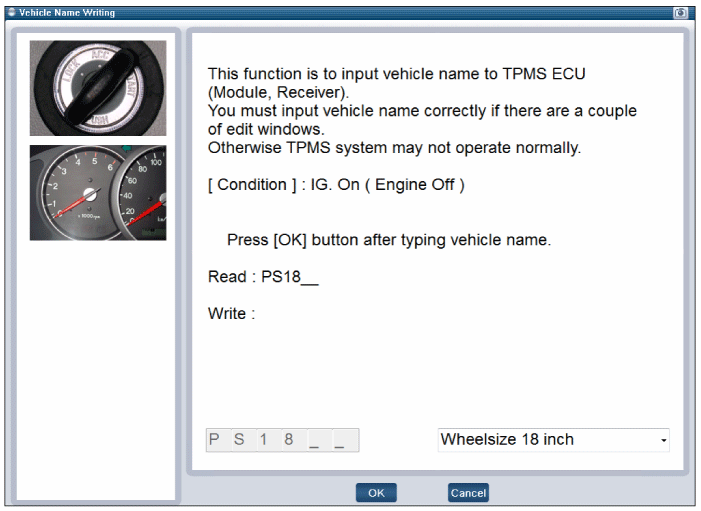

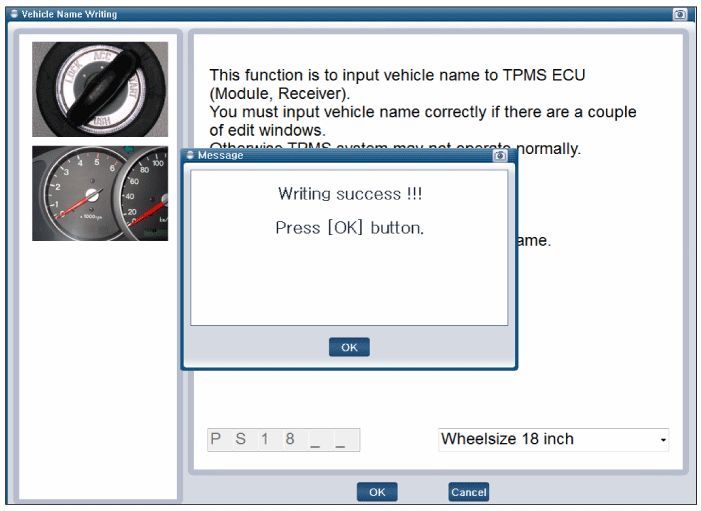

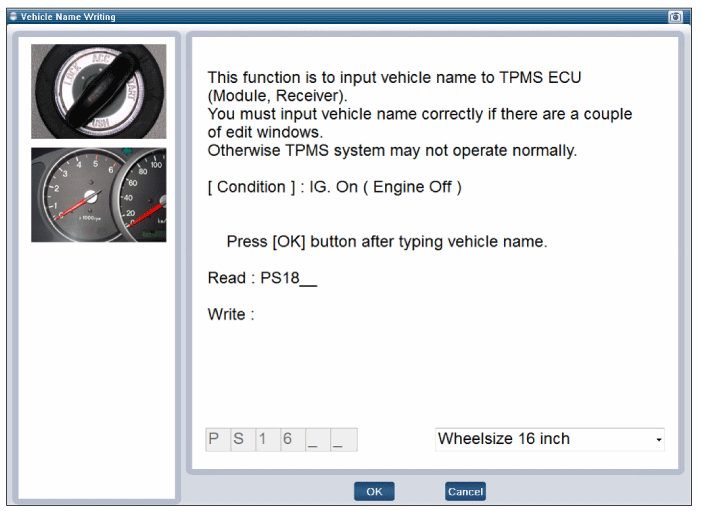

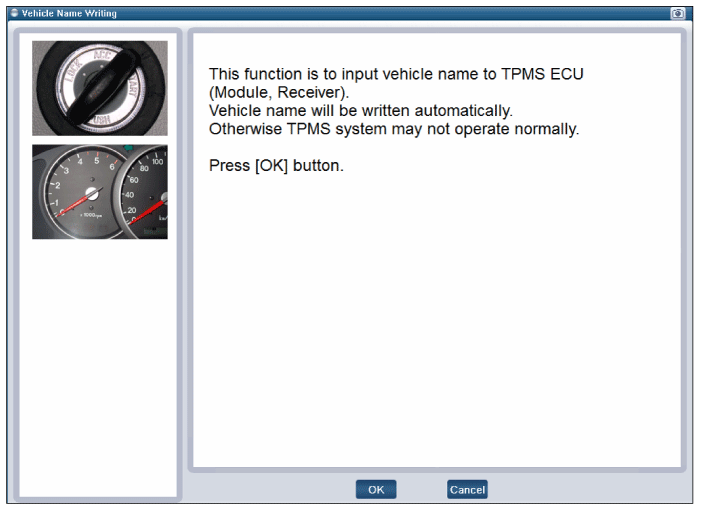

[Vehicle name input initialization]

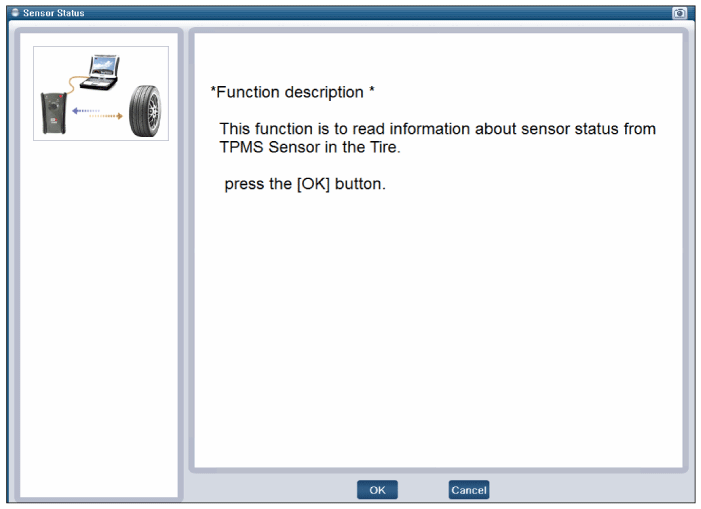

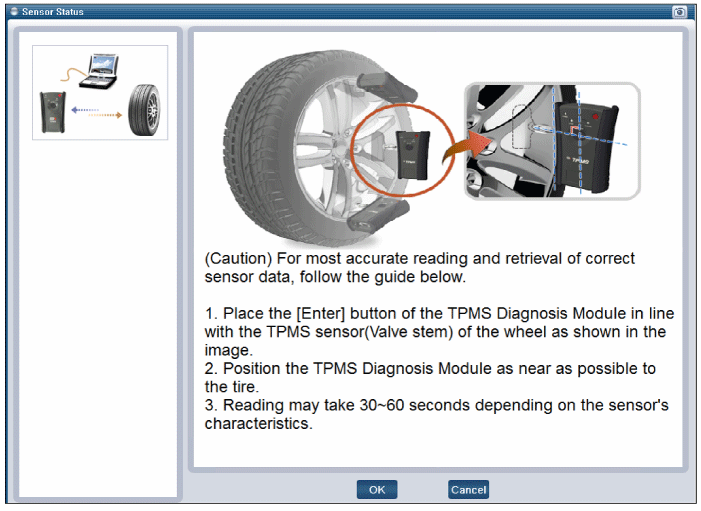

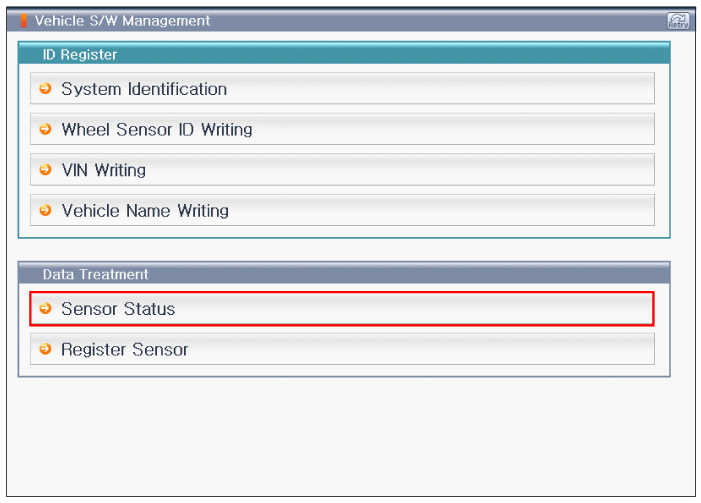

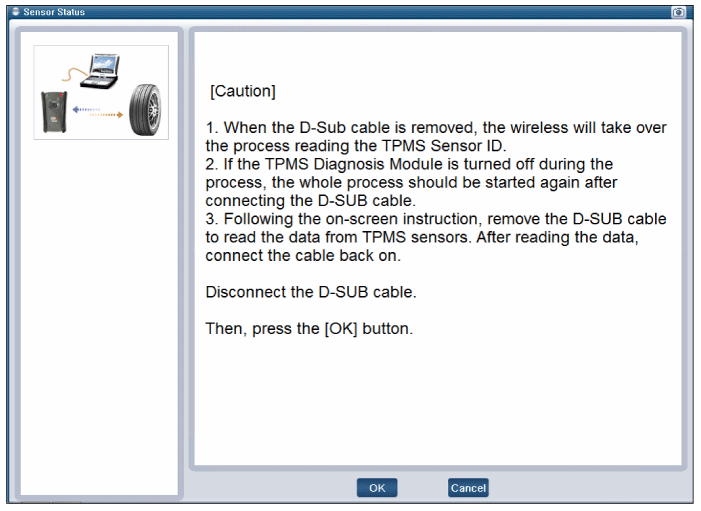

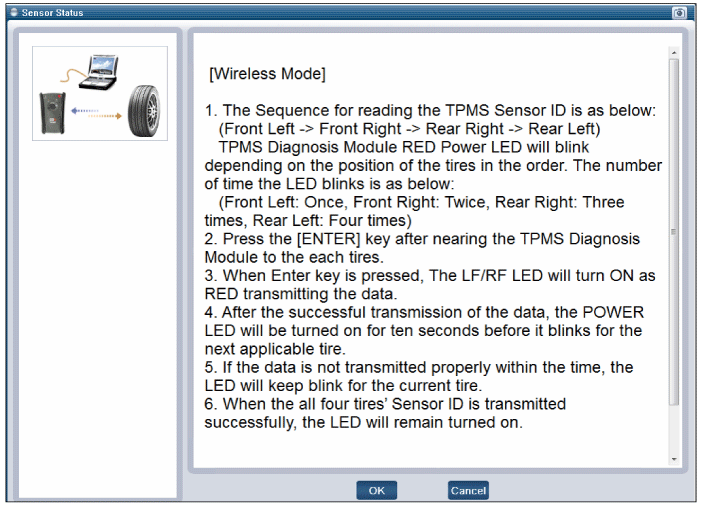

[Sensor Status initialization]

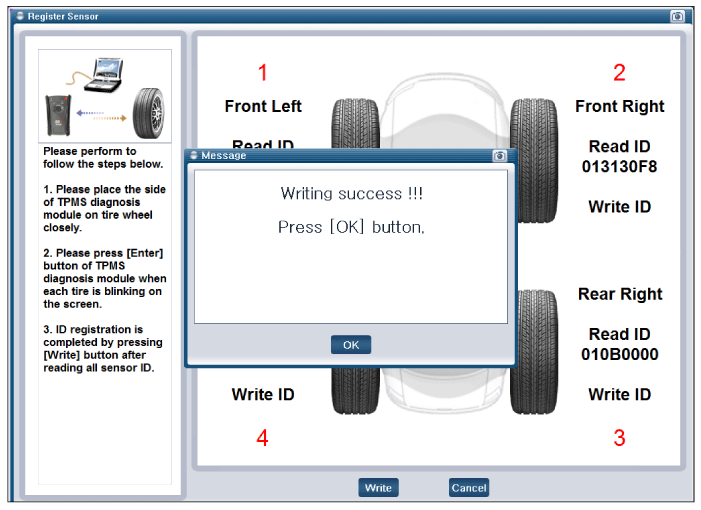

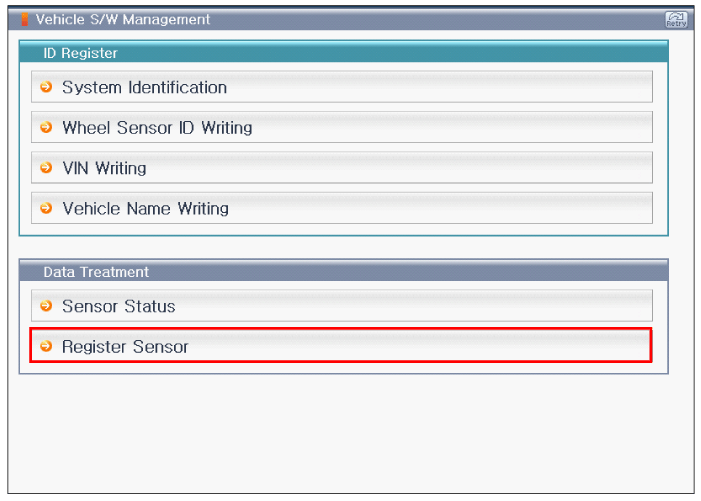

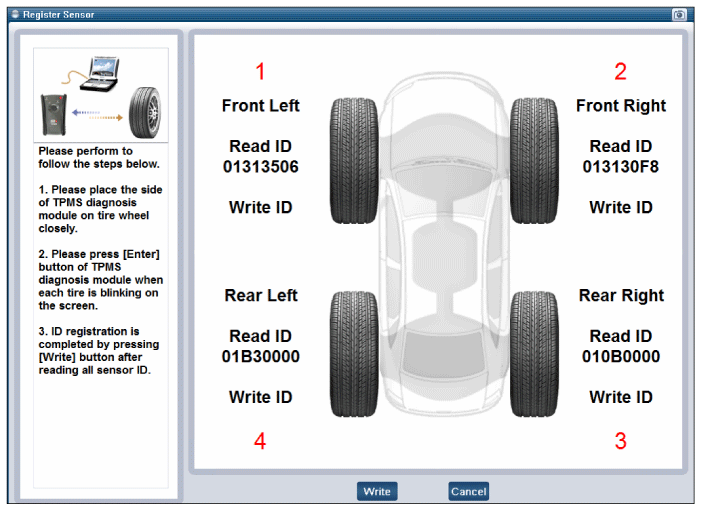

[Register Sensor initialization]
note
●

Write ID Read ID and be sure to check are the same.

●

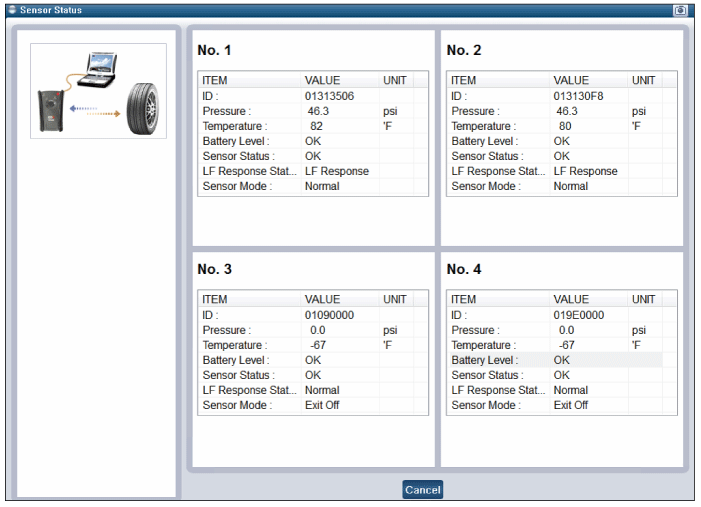

After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.
