3.
Remove the receiver with bracket.
When the receiver first arrives for replacement:
It will be in Virgin State.
It will not be configured for any specific platform.
It will not have any sensor ID's memorized.
It is important to make sure that the correct receiver is used to replace the faulty part i.e. it must be Low Line and not High Line in order to have the correct inflation warning thresholds set.
Disconnect vehicle battery.
Remove the crash pad garnish.
(Refer to BD group - "Crash Pad")
Remove the receiver with bracket.
Install in the reverse order of removal.
Re-connect battery and turn Ignition on.

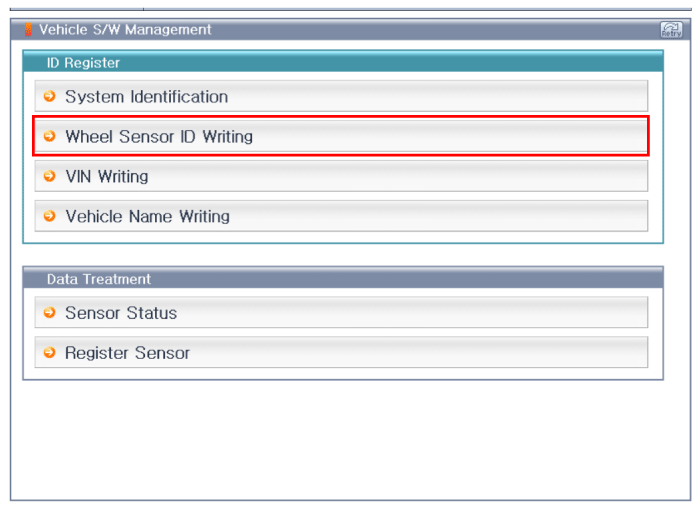

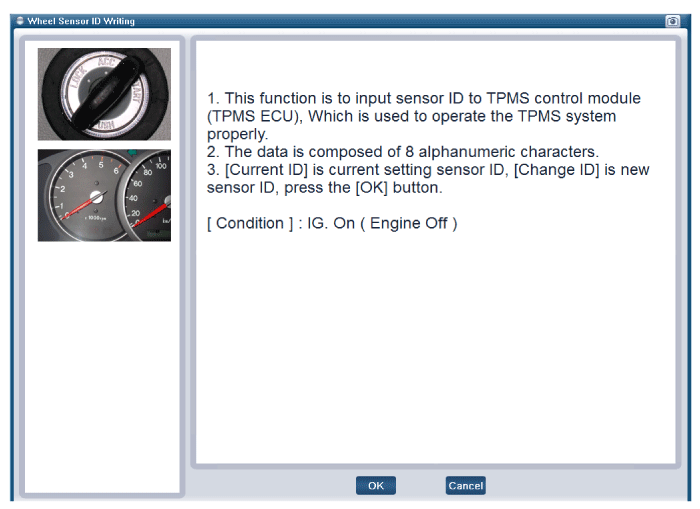

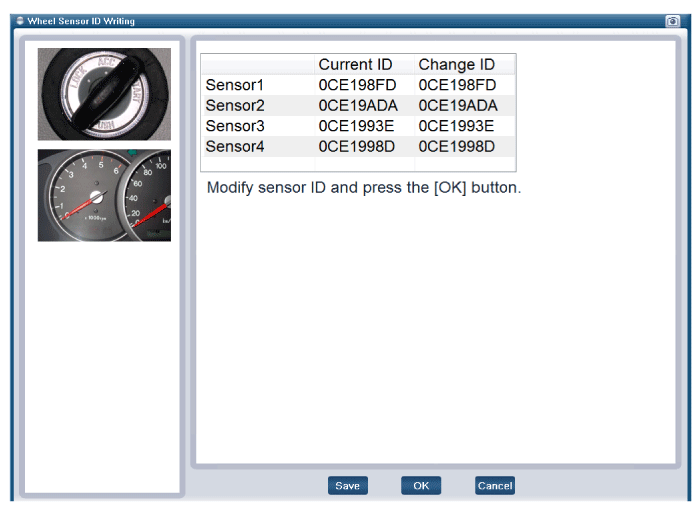

After replacing the receiver, learn by using self-diagnosis device(GDS).
