Components

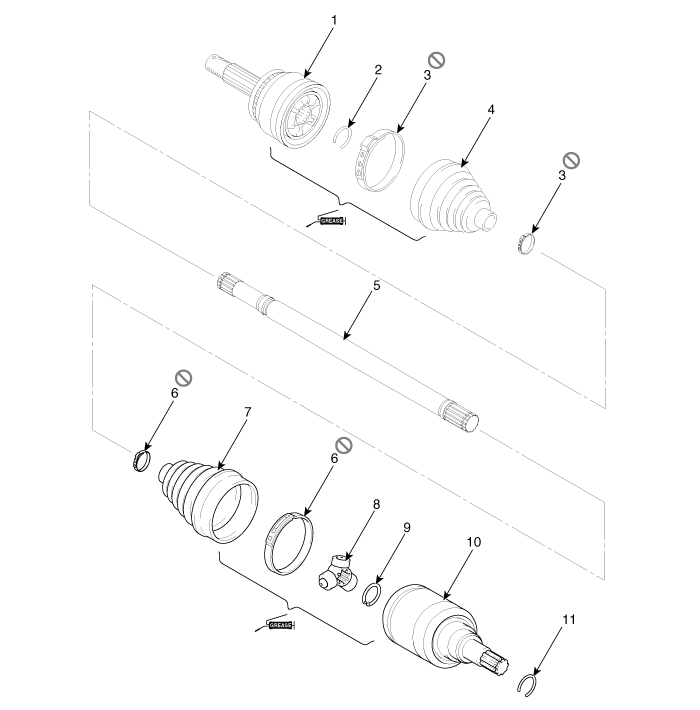

[LH]

1. BJ assembly

2. BJ circlip

3. BJ boot band

4. BJ boot

5. Shaft

6. TJ boot band

7. TJ boot

8. Spider assembly

9. Snap ring

10. TJ housing

11. TJ circlip

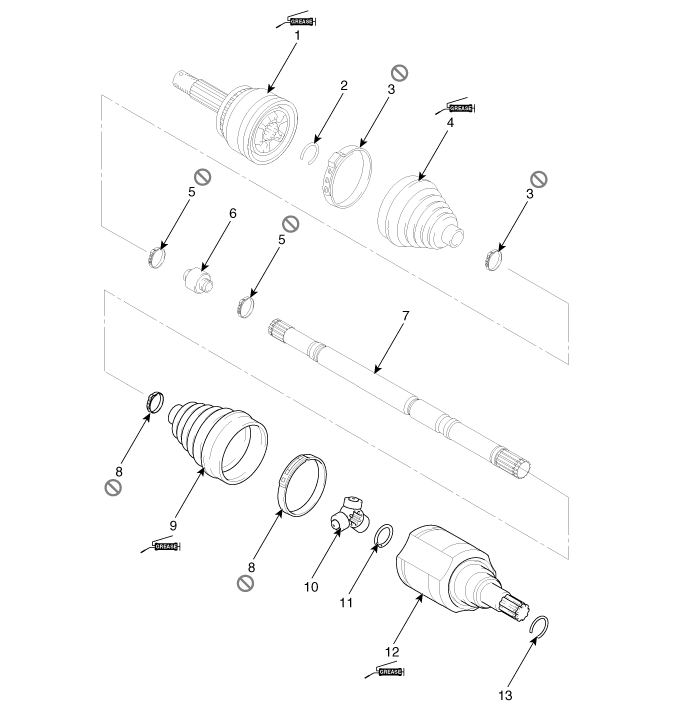

[RH]

1. BJ assembly

2. BJ circlip

3. BJ boot band

4. BJ boot

5. Dynamic damper band

6. Dynamic damper

7. Shaft

8. TJ boot band

9. TJ boot

10. Spider assembly

11. Snap ring

12. TJ housing

13. TJ circlip
