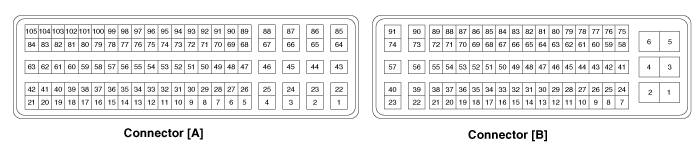

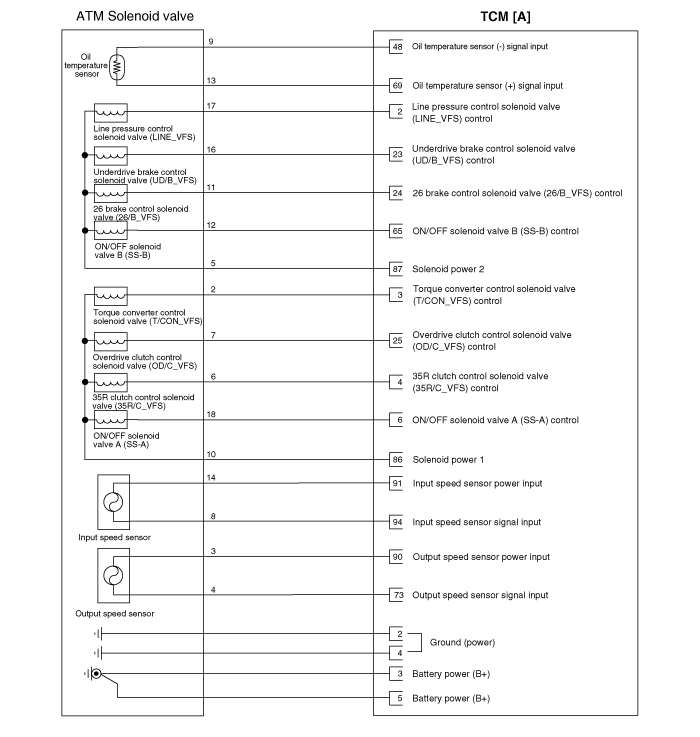

Pin | Description | Pin | Description |
2 | Line pressure control solenoid valve | 48 | Oil temperature sensor(-) |
3 | Torque converter control solenoid valve | 65 | ON/OFF solenoid valve B(SS-B) |
4 | 35R clutch control solenoid valve | 66 | ON/OFF solenoid valve A(SS-A) |

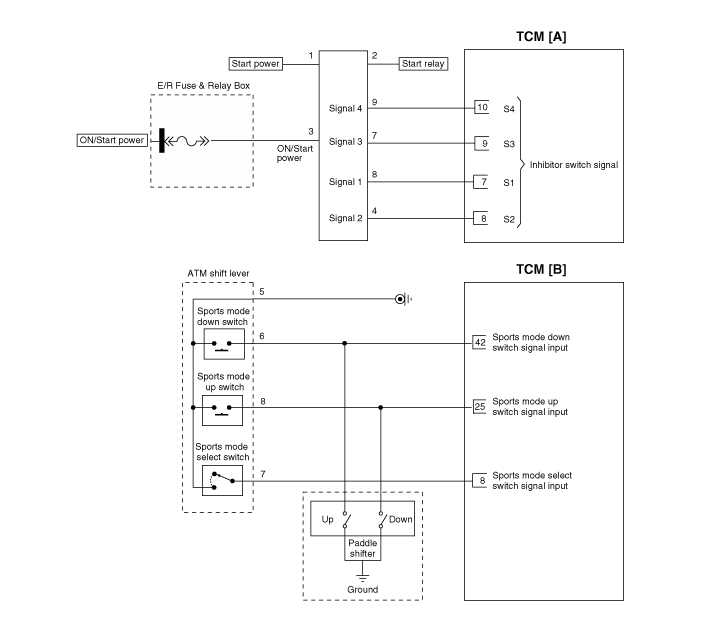

7 | Inhibitor switch signal "S1" | 67 | Battery voltage |
8 | Inhibitor switch signal "S2" | 69 | Oil temperature sensor (+) |
9 | Inhibitor switch signal "S3" | 73 | Output speed sensor signal |
10 | Inhibitor switch signal "S4" | 86 | Solenoid supply power 1 |
23 | Underdrive brake control solenoid valve | 87 | Solenoid supply power 2 |
24 | 26 brake control solenoid valve | 88 | Battery voltage |
25 | Overdrive clutch control solenoid valve | 90 | Output speed sensor power |
44 | Ground (Power) | 91 | Input speed sensor power |
45 | Ground (Power) | 94 | Input speed sensor signal |
46 | Shift lock solenoid |
Pin | Description |
8 | Sport mode down switch |
25 | Sports mode up switch |
42 | Sports mode select switch |
Pin | Description | Condition | Input/output value | |
Type | Level | |||
2 | Line pressure control solenoid valve (LINE_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
3 | Torque converter control solenoid valve (T/CON_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
4 | 35R clutch control solenoid valve (35R/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
7 | Inhibitor switch signal "S1" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
8 | Inhibitor switch signal "S2" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
9 | Inhibitor switch signal "S3" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
10 | Inhibitor switch signal "S4" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
23 | Underdrive brake control solenoid valve (UD/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
24 | 26 brake control solenoid valve (26/B_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
25 | Overdrive clutch control solenoid valve (OD/C_VFS) |
| Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL1 | ||||
44 | Ground (Power 1) |
| Ground | 0V |
45 | Ground (Power 1) |
| Ground | 0V |
48 | Oil temperature sensor (-) |
| Ground | 0V |
65 | ON/OFF solenoid valve B(SS-B) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
66 | ON/OFF solenoid valve A (SS-A) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
67 | Battery voltage | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
69 | Oil temperature sensor (+) | ON | Input | 0V/3.3V |
OFF | ||||
73 | Output speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
88 | Battery voltage | ON | Power | 0V/Battery voltage level |
OFF | 9V < Battery voltage level < 16V | |||
90 | Output speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
91 | Input speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
94 | Input speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
Pin | Description | Condition | Input/output value | |
Type | Level | |||
8 | Sports mode down switch | Down ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
25 | Sports mode up switch | Up ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
42 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
