Component Location Index

Engine Room

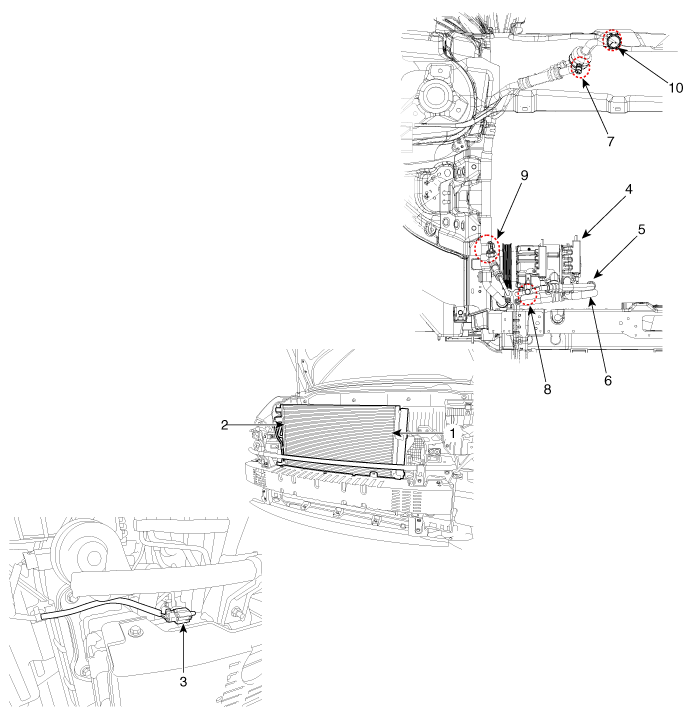

[Gamma Engine]

1. Receiver-drier

2. Condenser

3. Ambient temperature Sensor

4. Compressor

5. Discharge Hose

6. Suction & Liquid Tube Assembly

7. Service Port (Low Pressure)

8. Service Port (High Pressure)

9. A/C Pressure Transducer (APT)

10. Expansion Valve

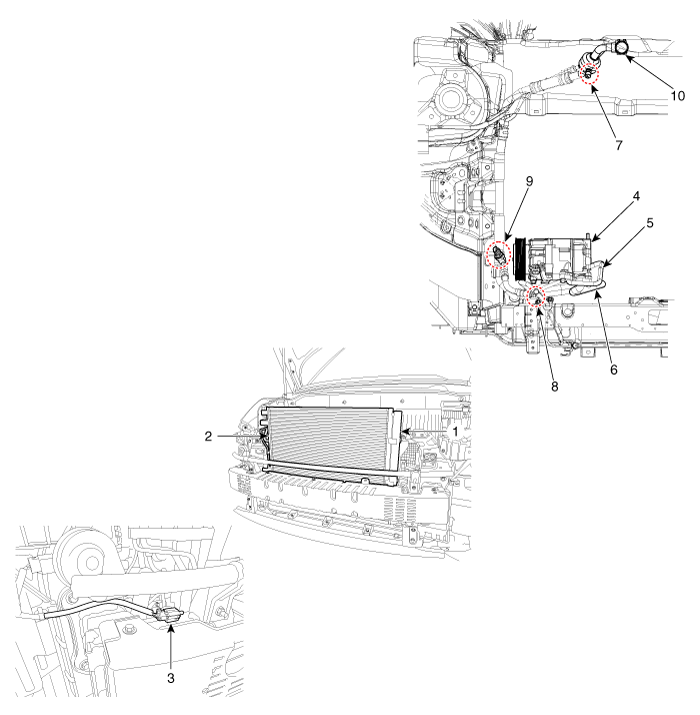

[Nu Engine]

1. Receiver-drier

2. Condenser

3. Ambient temperature Sensor

4. Compressor

5. Discharge Hose

6. Suction & Liquid Tube Assembly

7. Service Port (Low Pressure)

8. Service Port (High Pressure)

9. A/C Pressure Transducer (APT)

10. Expansion Valve

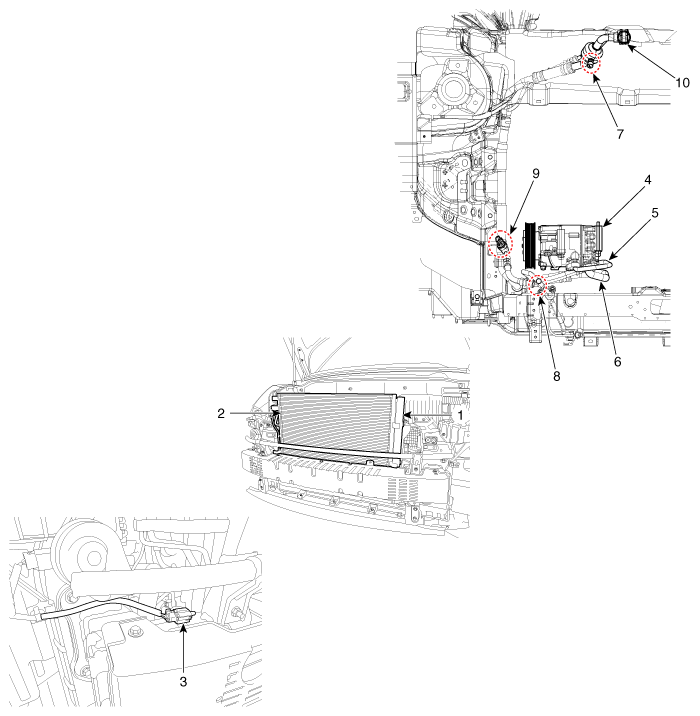

[U2 Engine]

1. Receiver-drier

2. Condenser

3. Ambient temperature Sensor

4. Compressor

5. Discharge Hose

6. Suction & Liquid Tube Assembly

7. Service Port (Low Pressure)

8. Service Port (High Pressure)

9. A/C Pressure Transducer (APT)

10. Expansion Valve

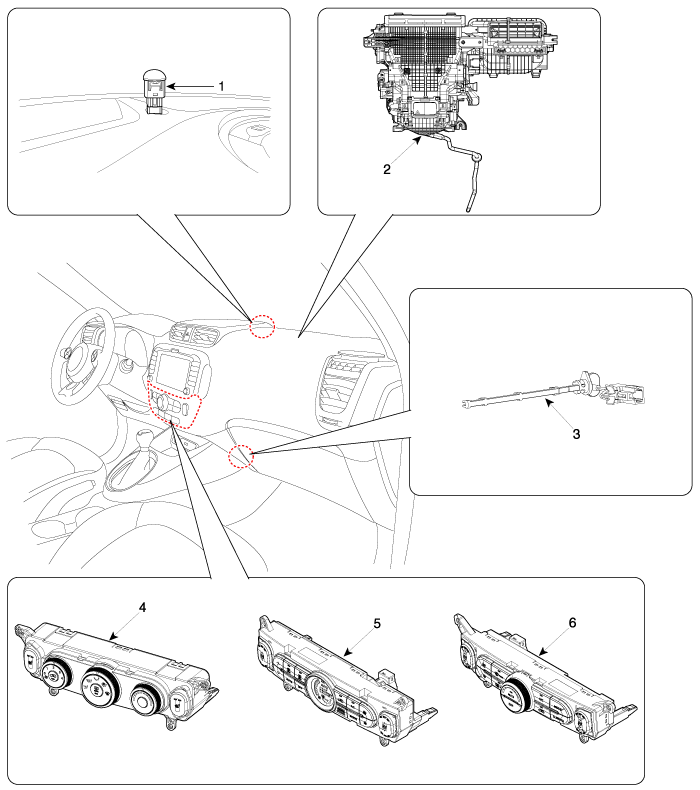

Interior

1. Photo Sensor

2. Heater & Blower Unit

3. Evaporator Temperature Sensor

4. Heater & A/C Control Unit (Manual)

5. Heater & A/C Control Unit (FATC)

6. Heater & A/C Control Unit (AVN)
