Components (1)
(Rear Seat Back Assembly)

1. Rear seat headrest [LH]

2. Rear seat headrest [Center]

3. Rear seat headrest [RH]

4. Rear seat headrest guide [RH]

5. Rear seat headrest guide [Center]

6. Rear seat headrest guide [LH]

7. Rear seat folding bezel [LH]

8. Rear seat folding lever [LH]

9. Tether anchor ganish [LH]

10. Rear seat latch assembly [LH]

11. Rear seat latch rod support bracket [LH]

12. Rear seat back bush hinge [LH]

13. Rear seat lower side bracket [LH]

14. Rear seat back striker [LH]

15. Rear seat back cover [LH]

16. Rear seat back pad [LH]

17. Tether anchor ganish [RH]

18. Rear seat back structure [LH]

19. Center hinge cover

20. Rear back armrest

21. Rear seat folding bezel [RH]

22. Rear seat folding lever [RH]

23. Rear seat latch rod support bracket [RH]

24. Rear seat latch assembly [RH]

25. Rear seat back striker [RH]

26. Rear seat back structure [RH]

27. Rear seat lower side bracket [RH]

28. Rear seat back bush hinge [RH]

29. Rear center seat belt retractor

30. Rear seat lower side bracket [Center]

31. Rear seat back cover [RH]

32. Rear seat back pad [RH]

33. Rear seat belt center cover

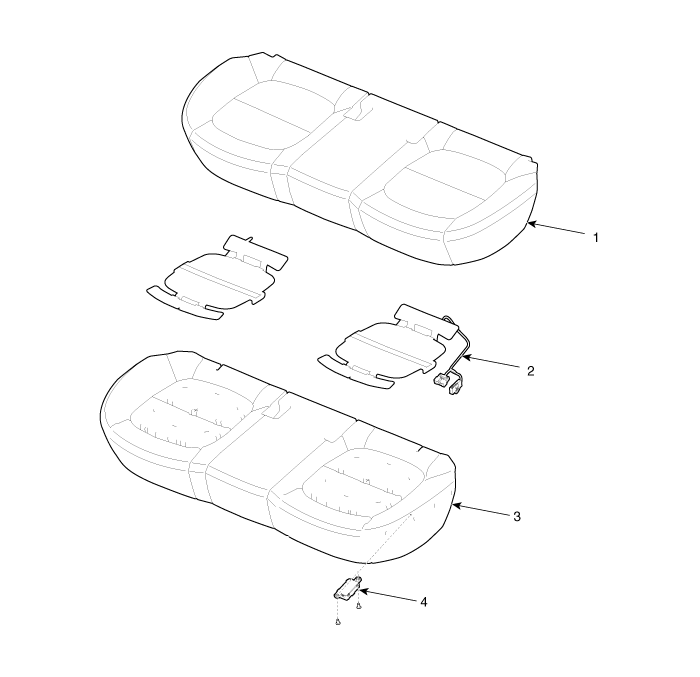

Components (2)
(Rear Seat Cushion Assembly)

1. Rear seat cushion cover

2. Rear seat cushion heater

3. Rear seat cushion pad

4. Heater ECU unit
