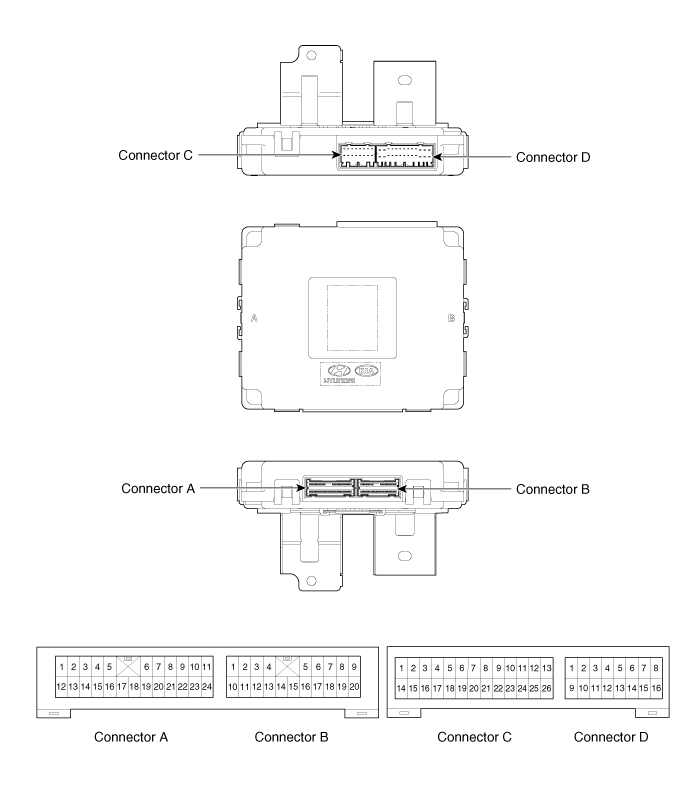

No. | Connector A (24 pin) | Connector B (20 pin) | Connector C (26 pin) | Connector D (16 pin) |
1 | Battery (+) | LIN (PAS, RPAS) | Washer motor power | - |
2 | IGN 1 | Front deicer relay | Front washer motor | - |
3 | IGN 2 | LS CAN high | Head lamp washer relay | Sunroof open switch |
4 | Brake switch | LS CAN low | Mirror unfold relay | Mirror unfold switch |
5 | Wiper mist switch | Mood lamp unlock state | DRL lamp LH | Mirror fold switch |
6 | Crash unlock input (PWM) | Horn relay | DRL lamp RH | Head lamp passing switch |
7 | - | RPAS buzzer | Room lamp | RPAS OFF switch |
8 | Key IN switch | HS CAN low | Key solenoid | Key interlock switch |
9 | Wiper washer switch | HS CAN high | - | Auto ligth switch |
10 | Wiper INT switch | Ground (Auot light) | - | Defogger switch |
11 | Wiper low switch | Auto light signal | Assistant seat belt indicator | Rear fog switch |
12 | Rear washer switch | Auto light power | Wiper low relay | Head lamp high switch |
13 | ACC | Safety power window enable high | RPAS switch indicator | Head lamp low switch |
14 | Wiper high switch | - | DRL lamp power | - |
15 | Front fog lamp switch | ATM solenoid | Rear washer motor | - |
16 | Rear wiper switch | Rear fog relay | Mirror fold relay | - |
17 | Rear INT switch | Key hole illumination lamp | - |
|
18 | - | - | - | |
19 | - | - | Head lamp low signal | |
20 | - | Ground (Power) | AV tail | |
21 | Tail switch |
| Wiper high relay | |
22 | Wiper INT volume | Rear right seat belt indicator | ||
23 | - | Rear center seat belt indicator | ||
24 | Ground (Signal) | Rear left seat belt indicator | ||
25 |
| - | ||
26 | Ground (Power) |
