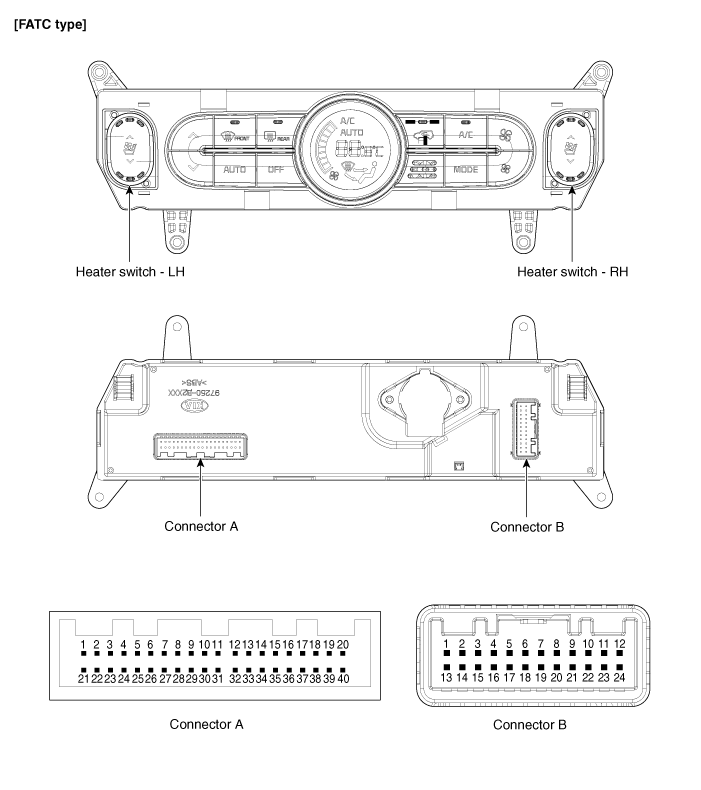

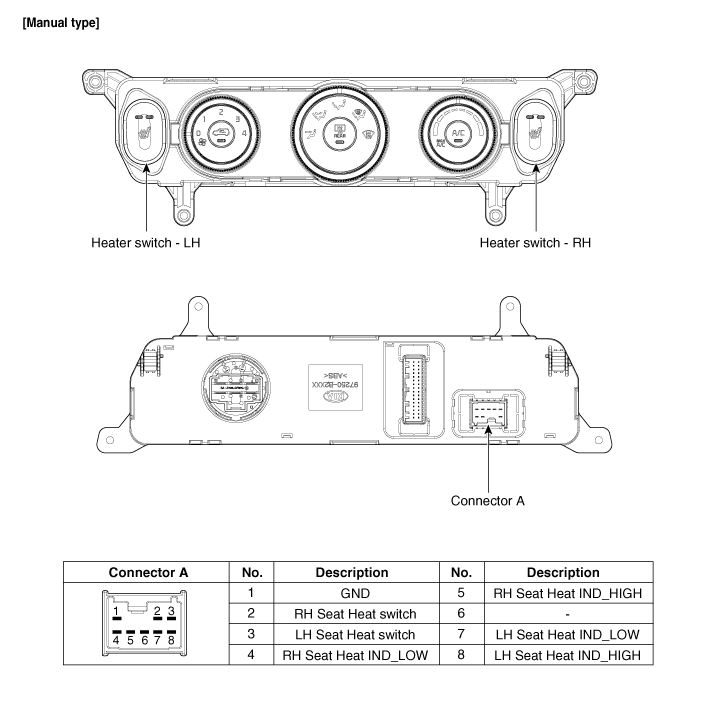

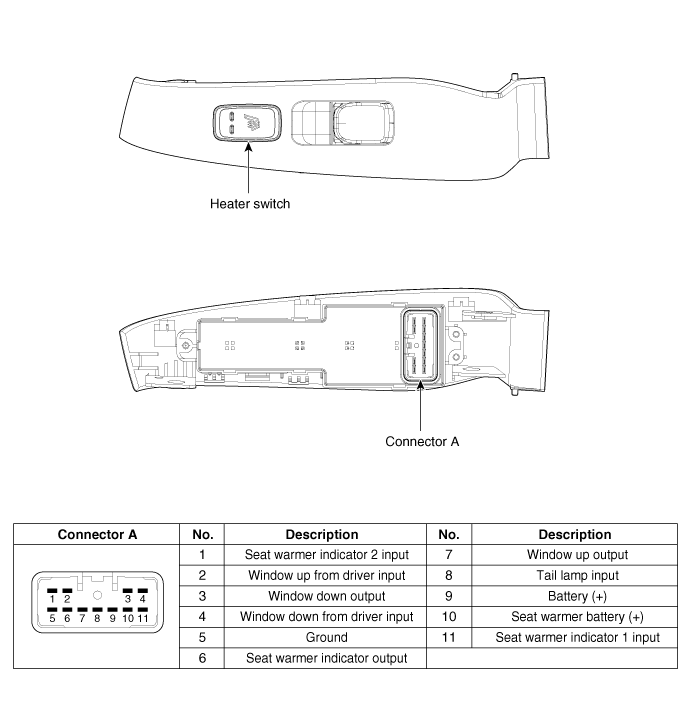

Connector | Pin NO | Function | Connector | Pin NO | Function |
A | 1 | ILL(+) | A | 33 | ECV (+) |
2 | SENSOR REF (+5) | 34 | ECV (-) | ||
3 | C_CANHIGH | 35 | FET (GATE) | ||
4 | C_CAN LOW | 36 | MM_CAN HIGH | ||
5 | MODE ACT'R (VENT) | 37 | MM_CAN LOW | ||
6 | MODE ACT'R (DEF) | 38 | RH SEAT HEAT INDICATOR - LOW | ||
7 | MODE ACT'R F/B | 39 | RH SEAT HEAT INDICATOR - MID | ||
8 | INTAKE ACT'R (FRE) | 40 | RH SEAT HEAT INDICATOR - HIGH | ||
9 | INTAKE ACT'R (REC) | B | 1 | GND | |
10 | INTAKE ACT'R F/B | 2 | SENSOR GND | ||
11 | K-LINE | 3 | FET (DRAIN F/B) | ||
12 | HTD | 4 | IONIZER DIAGNOSIS | ||
13 | REAR DEFOG S/W | 5 | CLEAN SIGNAL | ||
14 | TEMP ACT'R (COOL) | 6 | ION SIGNAL | ||
15 | TEMP ACT'R (WARM) | 7 | - | ||
16 | TEMP ACT'R F/B | 8 | - | ||
17 | LH SEAT HEAT INDICATOR - LOW | 9 | RH VETILATION SEAT SW | ||
18 | LH SEAT HEAT INDICATOR - MID | 10 | LH VETILATION SEAT SW | ||
19 | LH SEAT HEAT INDICATOR - HIGH | 11 | IGN1 | ||
20 | ILL - (RHEO) | 12 | IGN2 | ||
21 | DETENT OUT (+) | 13 | GND | ||
22 | LH SEAT HEAT SW | 14 | - | ||
23 | PTC RLY 2 | 15 | - | ||
24 | PTC RLY 3 | 16 | - | ||
25 | PTC ON SIGNAL | 17 | - | ||
26 | RH SEAT HEAT SW | 18 | LH VENTILATION SEAT INDICATOR - LOW | ||
27 | AMBIENT SENSOR (+) | 19 | LH VENTILATION SEAT INDICATOR - MID | ||
28 | EVAP SENSOR (+) | 20 | LH VENTILATION SEAT INDICATOR - HIGH | ||
29 | RH SEAT COOLER INDICATOR - LOW | 21 | - | ||
30 | RH SEAT COOLER INDICATOR - MID | 22 | BLWER MOTOR (+) | ||
31 | RH SEAT COOLER INDICATOR - HIGH | 23 | ISG DC | ||
32 | PHOTO SENSOR (-) | 24 | BATTERY |
