Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

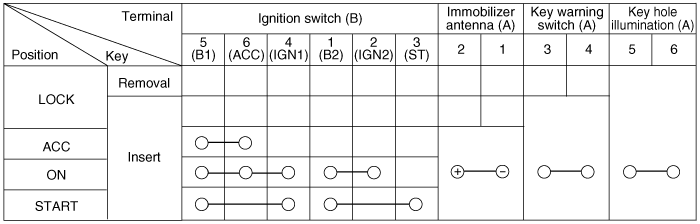

Check for continuity between the terminals.

If continuity is not specified, replace the switch.

Disconnect the negative (-) battery terminal.

Remove the crash pad lower panel.

(Refer to Body - "Crash Pad Lower Panel")

Remove the steering column upper and lower shrouds.

(Refer to Body - "Steering Column Shroud Panel")

Remove the wiper switch.

(Refer to "Multifunction switch")

Remove the ignition switch after loosening disconnecting the ignition switch 6P connector (A).

Remove the ignition switch assembly (A) after loosening the mounting bolts.

If it is necessary to remove the key lock cylinder (A), it is in the order as below.

(1)

Disconnect the key warning/ immobilizer connector (A)

(2)

Turn the key to ACC (A).

(3)

Remove the key lock cylinder (B) while pushing the removal/ installation button under the key cylinder (A).

Install the key lock cylinder.

Install the key warning and immobilizer connector.

Install the ignition switch assembly.

Install the steering column shrouds and crash pad lower panel.
