1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

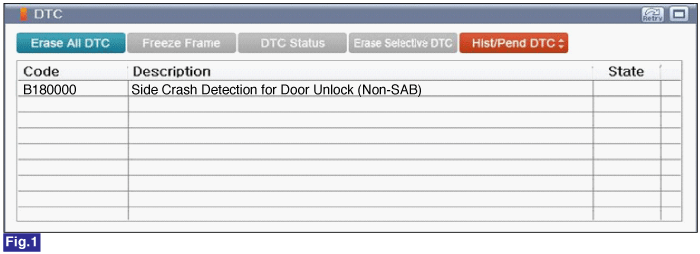

Fig.1) Diagnostic Trouble Code(DTC) is shown above

	▶ In the a vehicle which is not equipped with Side airbag and Curtain airbag.If lateral crashes occurs over specific values, this DTC is logged on SRSCM.If you could not delete this DTC, replace the SRSCM. Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.
