DTC Status
1.
Connect GDS to Data Link Connector(DLC).
3.
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
4.
Is DTC status displayed as Present?

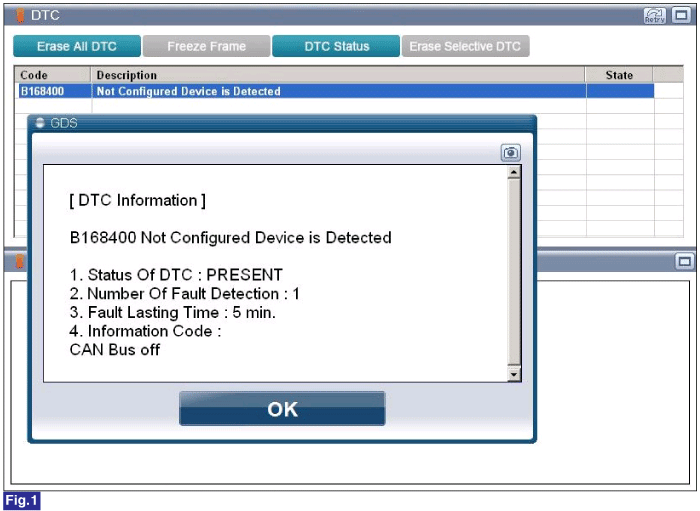

Fig.1) Diagnostic Trouble Code(DTC) is shown above
 | ▶ Check vehicle information and part number after replacing the SRSCM(Airbag ECU) and perform SRSCM(ACU) variant coding. ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
ACU Variant Coding
■ ACU Variant Coding (Off-line Type with GDS)
Fig.1) ACU Variant Coding 1
Fig.2) ACU Variant Coding 2
Fig.3) ACU Variant Coding 3
Fig.4) ACU Variant Coding 4
Fig.5) ACU Variant Coding 5
Fig.6) ACU Variant Coding 6
Fig.7) ACU Variant Coding 7
