Vehicle Data

Battery Sensor

Terminal

Inspection Condition

Measured

Data

Remarks

Pin No.

1

Power

1.

Ignition Switch "ON", Engine "OFF"

2.

Measure Voltage of Wiring Side(Disconnected)

B+

-

2

Signal

Approx. 11V(LIN signal)

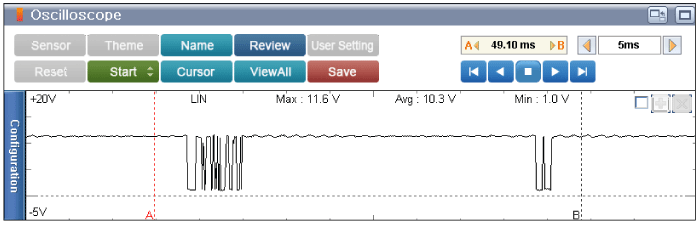

Refer to Fig.1
