3.

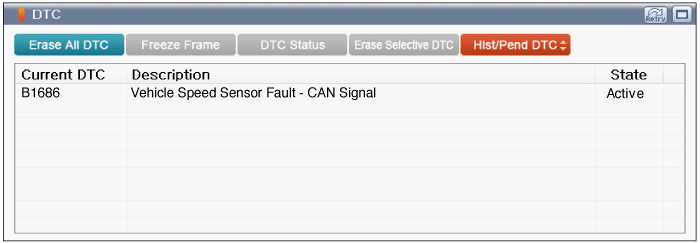

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
Ignition "ON" & Engine "ON"
Drive vehicle.
Monitor "Vehicle Speed" parameters in A/T system "Current Data" with GDS.
Specification : Refer to Figure Below

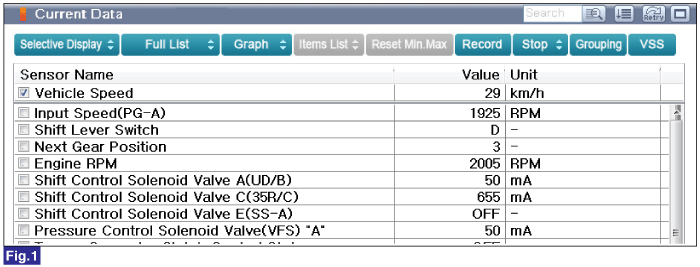

Fig.1) Vehicle speed data in A/T system while driving vehicle.

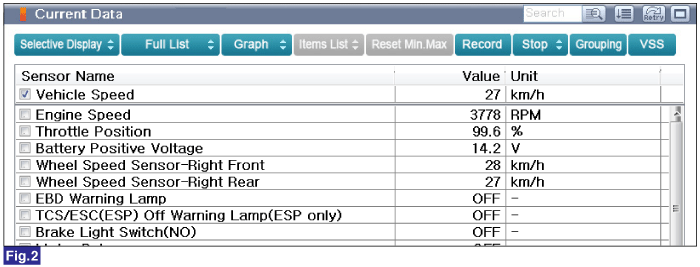

Fig.2) Vehicle Speed data in ESC system while driving.
Is displayed parameter within specification?
| ▶ Go to "Wiring Inspection" procedure. |
| ▶ Check for Vehicle Speed related DTC and perform applicable troubleshooting and then re-do this troubleshooting guide steps. ▶ If Vehicle Speed related DTCs are corrected and the problem still occurs, go to "Wiring Inspection" procedure. |
