3.
Measure resistance between Pin No.1(Power) terminal and Pin No.2(Signal) terminal of the Front LH Wheel Speed Sensor. (Component Side)
Specification : Approx. 467.9 kΩ

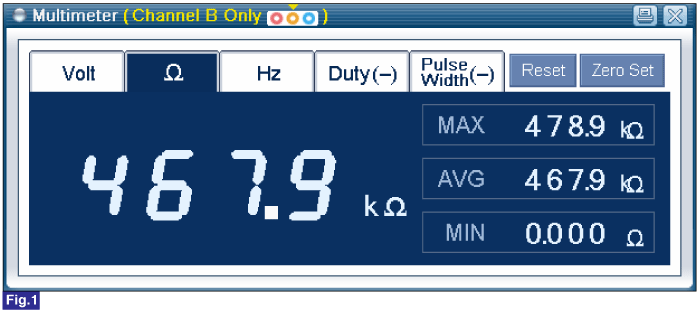

Fig.1) Resistance of Front LH Wheel Speed Sensor
IG Key "OFF".
Disconnect HECU connector.
Measure resistance between Pin No.1(Power) terminal and Pin No.2(Signal) terminal of the Front LH Wheel Speed Sensor. (Component Side)
Specification : Approx. 467.9 kΩ
Fig.1) Resistance of Front LH Wheel Speed Sensor
Is the resistance of front LH wheel speed sensor simular as shown above?
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace wheel speed sensor and then go to "Verification of Vechicle Repair" procedure. |
