Connect GDS to Data Link Connector(DLC).
Ignition "ON"

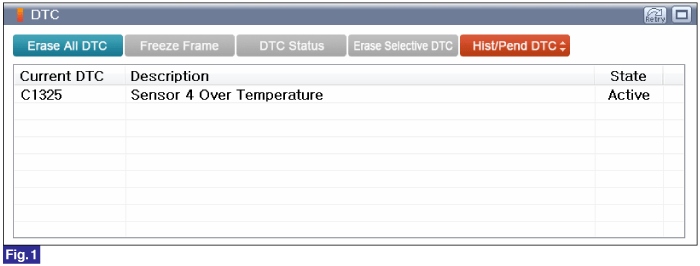

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Fig.1) Diagnostic Trouble Code(DTC) is shown as above
Is DTC status displayed as Present?
![]() | ▶ Go to "Monitor GDS Data" procedure. |
![]() | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
IG "ON"

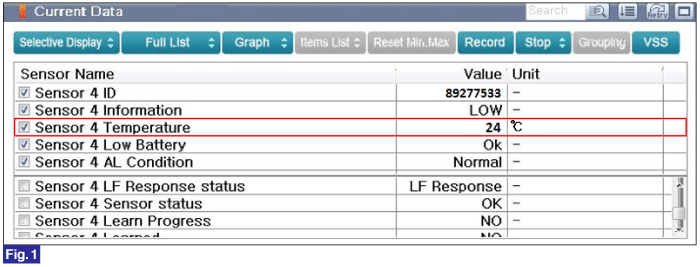

Monitor "Sensor 4 Temperature" parameter on "Current Data" with GDS.
Fig.1) 'Temperature' is Less than 230℉(110℃)
Is parameter within specifications?
![]() | ▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
![]() | ▶ Due to damaged tires, driving of lower pressure tires, and the excessive actuation of brake. these may cause a temporary fault code. ▶ First check the pressure of tires and the status of tires, second repair tires or replace with known-good tires as necessary, finally go to "Verification of Vehicle Repair" procedure. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
