Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

Connect GDS to Data Link Connector(DLC).

IG "ON"

Monitor Sensor 1 parameter on "Current Data" with GDS.

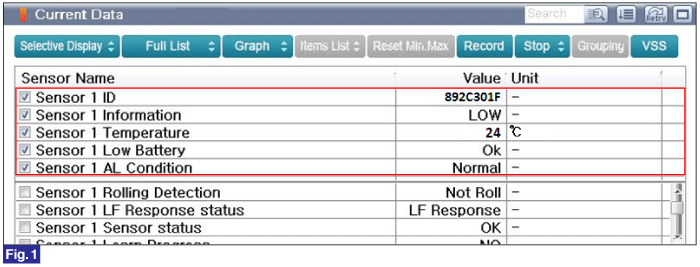

Fig.1) Check a value of Sensor 1 information.

Select "Vehicle S/W Management" function.

Postion the GDS TPMS(Exciter) as near as possible to the tire.(Fig.1)

Monitor "Sensor Status" in "Vehicle S/W Management" with GDS.(Refer to procedure below"

Reference) Sensor Status

1. Connect GDS to Data Link Connector(DLC).

2. Ignition "ON"

3. Select "Sensor Status" in "Vehicle S/W Management" with GDS.

4. Perform following procedure.

Fig.1~8) Sensor Status Procedures

Does Sensor Status information and Current Data displays same information?

▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Check for correct TPMS Sensor ID. ▶ In case sensor pressure is abnormal, compare tire pressure from pressure gauge and pressure information from Current Data with GDS. ▶ Check for after market parts that can interfere TPMS sensor signal. ▶ Substitute with a known-good TPMS Module and check for proper operation. If the problem is corrected,replace TPMS Module and then go to "Verification of Vehicle Repair" ▶ Perfrom "Vehicle Name Writing", "Write VIN" and "Wheel Sensor ID Writing" in "Vehicle S/W Management" with GDS TPMS(Exciter) or drive vehicle with over 15 mi/h(25 km/h) for 10 minutes to complete auto-learning and auto-location, In case TPMS Module is replaced. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

note

Reference) VIN Writing

1. Connect GDS to Data Link Connector(DLC).

2. Ignition "ON"

3. Select "Write VIN" in "Vehicle S/W Management" with GDS.

4. Perform following procedure.

Fig.1~4) Write VIN1~4

Reference) Vehicle Name Writing

1. Connect GDS to Data Link Connector(DLC).

2. Ignition "ON"

3. Select "Vehicle Name Writing" in "Vehicle S/W Management" with GDS.

4. Perform following procedure.

Fig.1~4) Vehicle Name Writing

Reference) Register Sensor

1. Connect GDS to Data Link Connector(DLC).

2. Ignition "ON"

3. Select "Register Sensor" in "Vehicle S/W Management" with GDS.

4. Perform following procedure.

Fig.1~8) Register Sensor Procedures
