Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

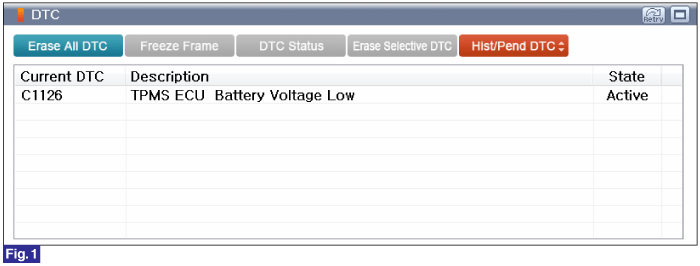

Fig.1) Diagnostic Trouble Code(DTC) is shown as above
Is DTC status displayed as Present?
![]() | ▶ Go to "Monitor GDS Data" procedure. |
![]() | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
Engine "ON"
Turn on all electrical load such as headlamp, rear window defogger, and A/C.
Maintain engine speed at about 2500 RPM.
Monitor "Battery Voltage" parameter on "Current Data" with GDS.
Specification : 9 ~16[V]
Is parameter within specifications?
![]() | ▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
![]() | ▶ Go to "Wiring Inspection" procedure. |
