4.
Is DTC status displayed as Present?

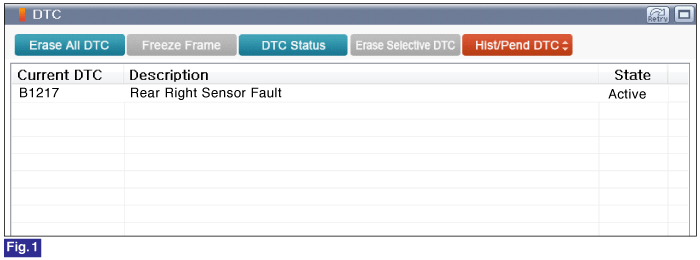

Fig.1) Diagnostic Trouble Code(DTC) is shown above
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
Fig.1) Diagnostic Trouble Code(DTC) is shown above
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition "OFF"
Refer to "Shop Manual" and remove necessary parts to get access to Rear Right PAS Sensor connector.
Ignition "ON"
Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of Rear Right PAS Sensor harness connector and chassis ground.
Specification : Refer to Figure below

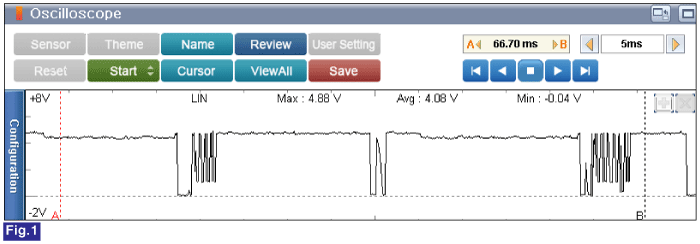

Fig.1 ) Normal LIN communication signal waveform
Is measured value within specification?
| ▶ Go to "System Inspection" procedure. |
| ▶ Go to "Wiring Inspection" procedure. |
