Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

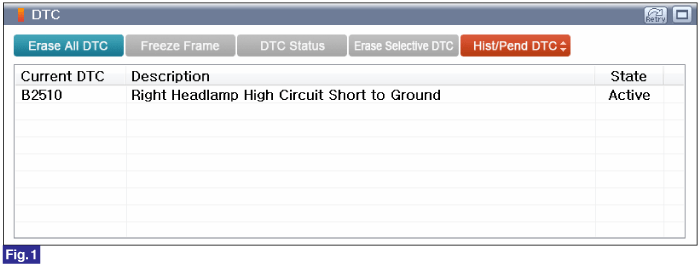

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Current data" and "Actuation Test" mode.

Monitor "Head Lamp High Output" in the "Current Data" and Perfom "Head Lamp High Output" in the "Actuation Test" with GDS.

Fig.1) "Haed Lamp High Output" parameter shows "ON" when the Head Lamp High operates properly on Actuation test of "Head Lamp High Output"

Fig.2) When the Head Lamp High operates on performing Actuation Test of "Head Lamp High Output"

Is the RH head lamp high operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
