Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

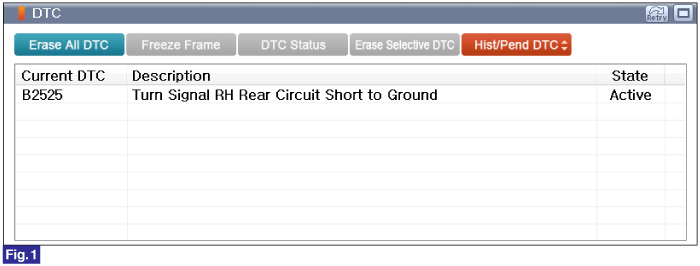

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Current data" and "Actuation Test" mode.

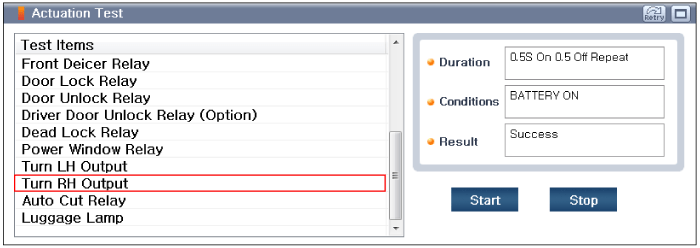

Perfom "Turn RH Output" in the "Actuation Test" with GDS.

Fig.1) Rear RH Turn Signal blinks when performing "Turn RH Output" in the "Actuation Test"

Is the Rear RH Turn Signal Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
