4.
Is DTC status displayed as Present?

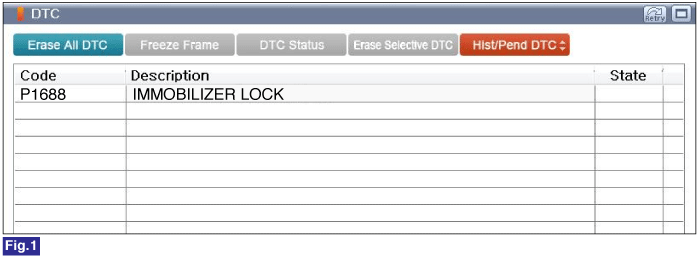

Fig 1) Diagnostic Trouble Code(DTC) is shown above
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
Fig 1) Diagnostic Trouble Code(DTC) is shown above
| ▶ Go to "Monitor GDS Data" procedure. |
| ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition "ON" & Engine "OFF"
After connecting GDS, Monitor the "check key status" parameter on the "Current data" with GDS.
Specification : Refer to Figure below

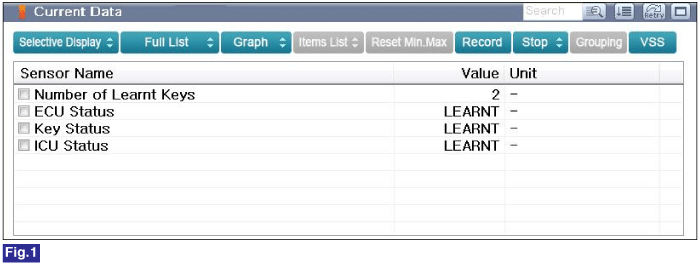

Fig 1) Displays number of registered key and learning status.
Is the PCM and Immobilizer control unit learnt status ?
| ▶ Fault is intermittent caused by poor contact in Immobilizer control unit and/or PCM's connector or was repaired and Imobilizer Control Unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Component inspection" procedure. |
