1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

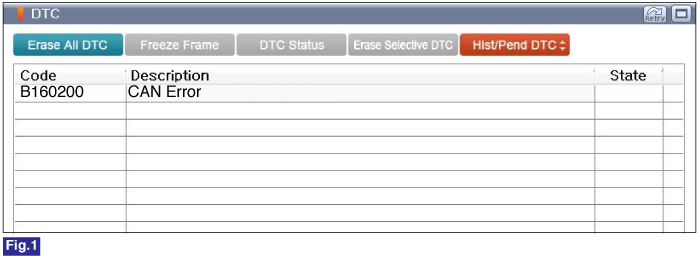

Fig 1) Diagnostic Trouble Code(DTC) is shown above.

	▶ Go to "Wiring Inspection" procedure.
	▶ Fault is intermittent caused by poor contact in the sensor's and, or SMK unit 's connector or was repaired and SMK unit memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamina.
