2.
Check the variation of FTPS by controling the engine speed to 2,000rpm

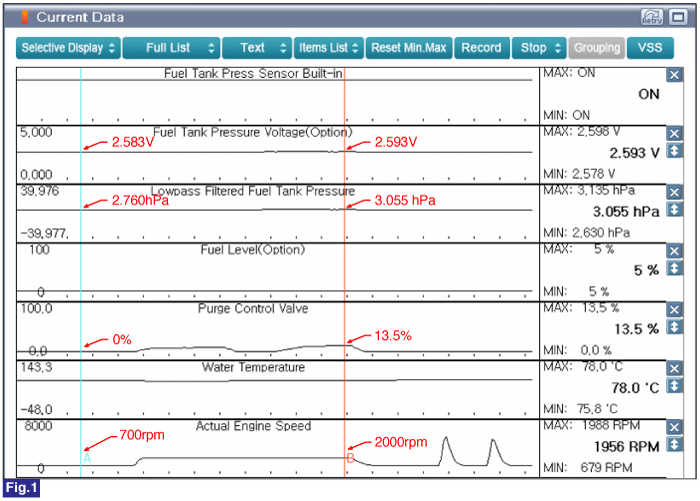

Fig.1) The variation of FTPS with PCSV operation.
Connect GDS to DLC(Data Link Cable).
Check the variation of FTPS by controling the engine speed to 2,000rpm
Fig.1) The variation of FTPS with PCSV operation.
Does the CCV operate properly? (Check variation)
 | ▶ Go to "System Inspection" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace FTPS and then go to "System Inspection" procedure. |
