3.
Measure resistance between Pin No.2(Signal) terminal and Pin No.1(Ground) terminal of the CKPS.. (Component Side)
Specification : Approx. 950Ω [20°C (68°F)]

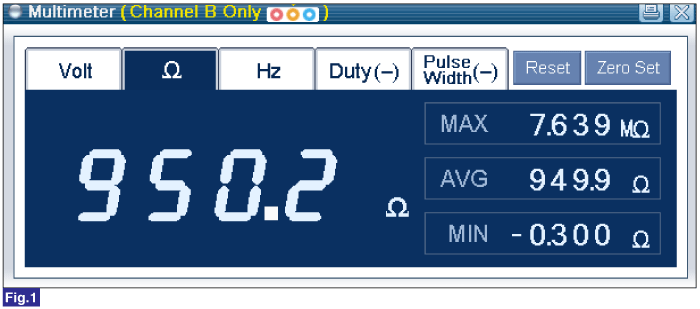

Fig.1) Resistance of CKPS
IG Key "OFF".
Disconnect CKPS connector.
Measure resistance between Pin No.2(Signal) terminal and Pin No.1(Ground) terminal of the CKPS.. (Component Side)
Specification : Approx. 950Ω [20°C (68°F)]
Fig.1) Resistance of CKPS
Is the measured Value within specification?
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Crankshaft Tone wheel damage Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. ▶ If no problems were found with the circuits or connectors, Replace the CKPS. |
