Specification

Item

Specification

ETC Motor Coil Resistance (Ω)

Approx. 2 ~ 3Ω [30°C(86 °F)]

Signal Waveform & Data

Fig.1) Engine Idle after Warm Up

ETC Moter(+) → Duty(+) Approx. 20%

Duty(-) Approx. 80%

ETC Moter(-) → Not in Control

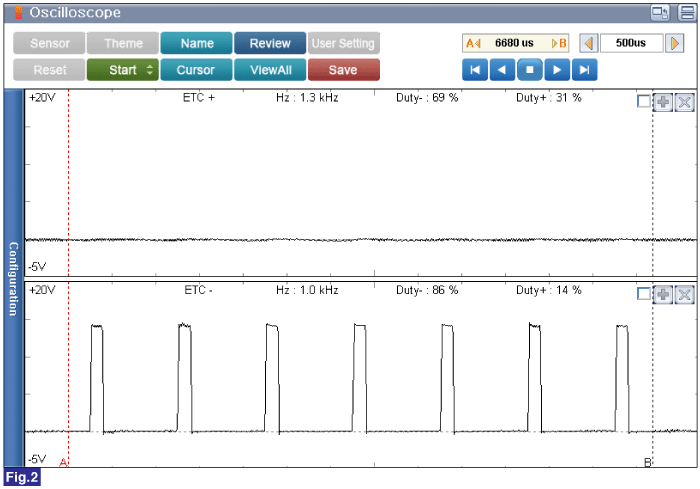

Fig.2) Waveform of ETC Motor operation immediate when engine accelerating.
