Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor the "CAN" parameters on the GDS.

▶ Check "Transaxle type, Torque control request, etc" at the ECM/PCM service data mode.

▶ Check "TPS", "RPM", and "Idle Status" parameters among TCU's current data.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

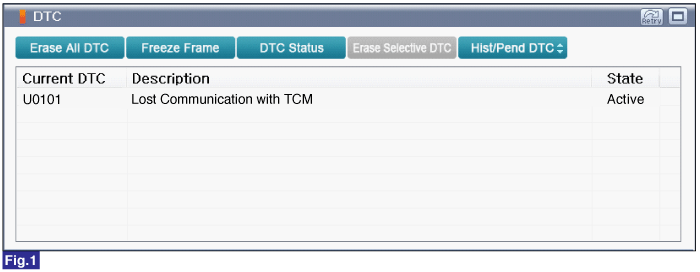

Fig.1) Diagnostic Trouble Code(DTC) is shown above.

Is DTC status displayed as Present?

	▶ Go to "Terminal and Connector Inspection" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.
