Component Inspection
■ Check ECTS performance
1.

IG KEY "OFF".

2.

Disconnect ECTS connector.

3.

Measure resistance between Pin No.3(Signal) terminal and Pin No.1(Ground) terminal of the ECTS.(Component Side)

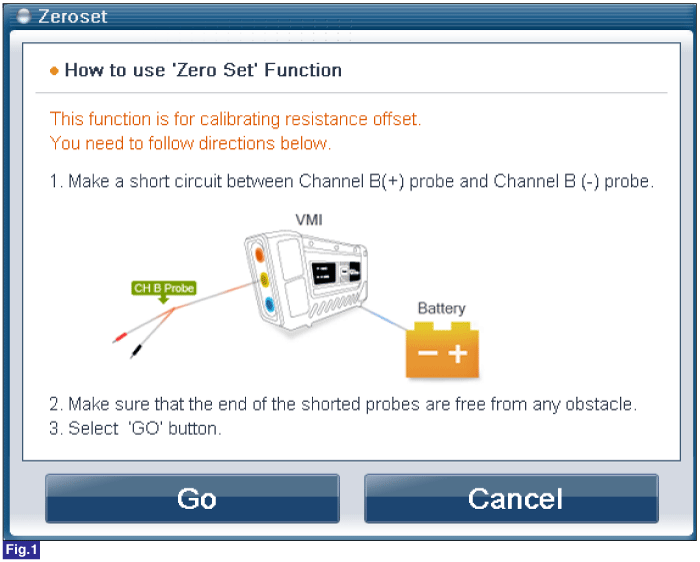

Fig.1) 'Zero Set' Function

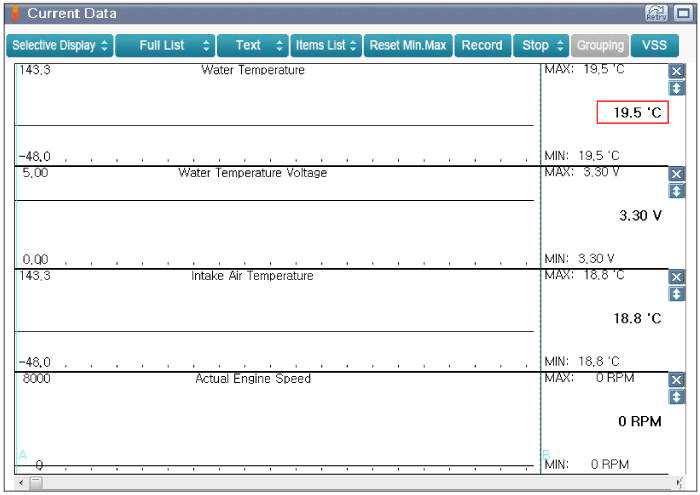

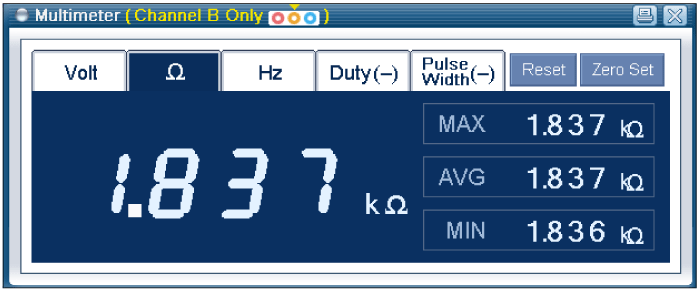

Specification : Approx. 1.8 kΩ at 19.5°C(67.1 °F)

Fig.1)

Temperature[℃(℉)]

Resistance[kΩ]

Temperature[℃(℉)]

Resistance[kΩ]

-40(-40)

48.14

40(104)

1.15

-20(-4)

14.13~16.83

60(140)

0.59

0(32)

5.79

80(176)

0.32

20(68)

2.31~2.59

-

-

Fig.1) Resistance of ECTS

4.

Does the ECTS operate properly? (Check variation)

▶ Go to "Verification of Vehicle Repair" procedure.

▶ If no problems were found with the circuits or connectors, Replace the ECTS.
