1.

Connect GDS to Data Link Connector(DLC).

2.

IG "ON"

3.

Select vehicl type, model, year and engine type.

4.

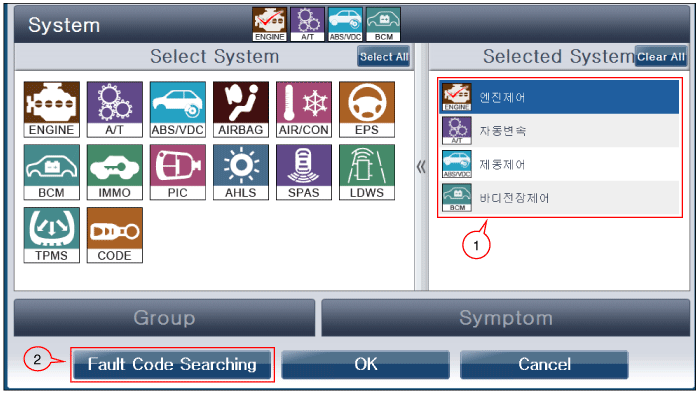

Select "ENGINE", "A/T", "ABS/VDC" and "BCM".(1)

5.

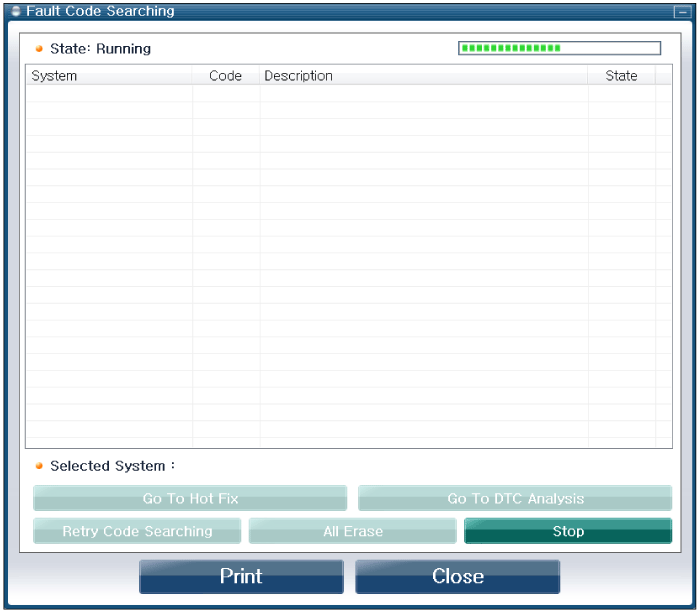

Search DTC.(2)

6.

Check DTC of selected system.

7.

Is any DTC present concerned CAN or communication failed?

	▶ Go to "Terminal & Connector Inspection" procedure.
	▶ Fault is intermittent caused by poor contact in the sensor’s and/or ECM’s connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure.
