3.
Measure resistance between Pin No.1(Signal A) terminal and Pin No.2(Signal B) terminal of the CKPS.. (Component Side)
Specification : Approx. 950Ω [20°C (68°F)]

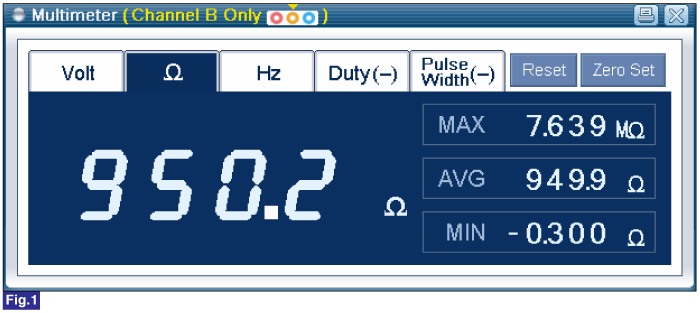

Fig.1) Resistance of CKPS
IG KEY "OFF".
Disconnect CKPS connector.
Measure resistance between Pin No.1(Signal A) terminal and Pin No.2(Signal B) terminal of the CKPS.. (Component Side)
Specification : Approx. 950Ω [20°C (68°F)]
Fig.1) Resistance of CKPS
Does the CKPS operate properly? (Check variation)
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace CKPS and then go to "Verification of Vechicle Repair" procedure. |
