4.
Monitor "Air Mix Door Potentiometer-Driver" parameter in "Current Data" with GDS.
Specification : Driver Air Mix Door-0% : 6.3% / Driver Air Mix Door-50% : 49.8% / Driver Air Mix Door-100% : 94.1%
Connect GDS to Data Link Connector(DLC).
Ignition "ON"

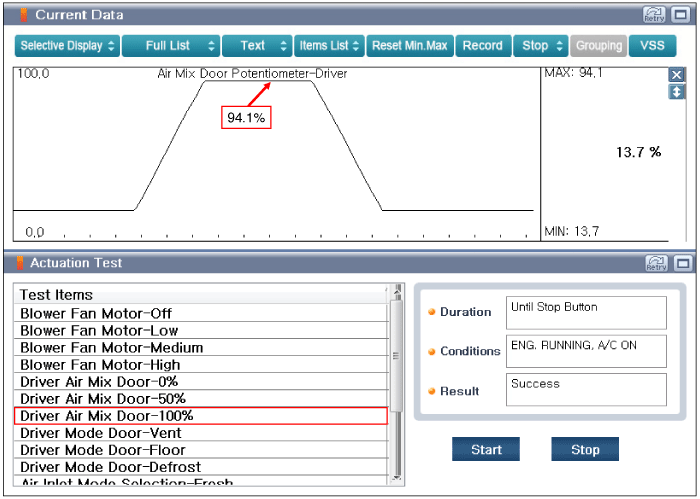

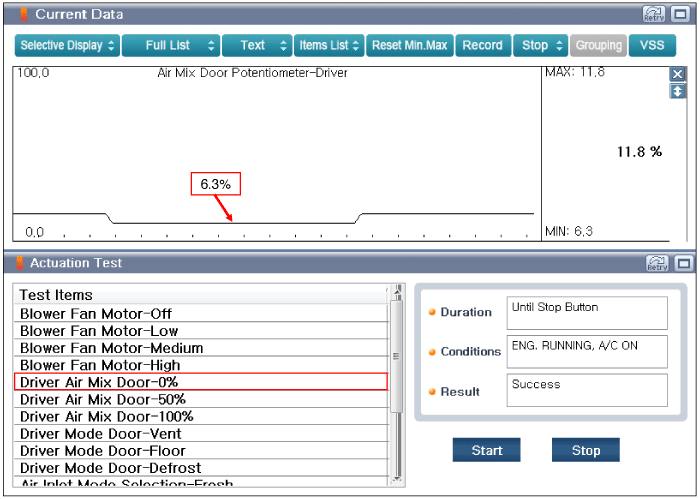

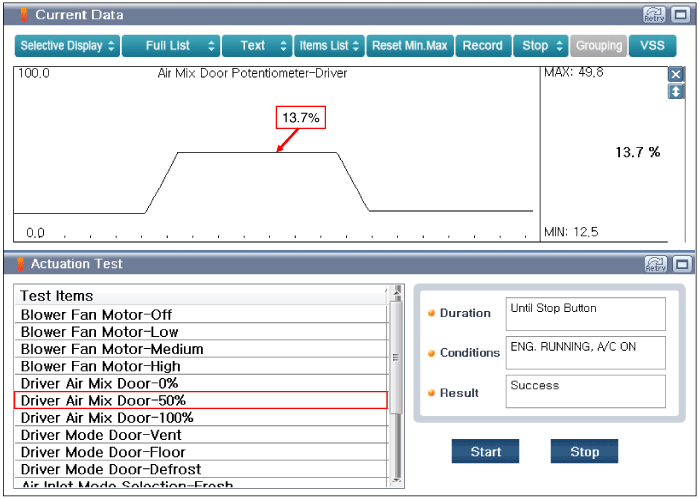

Perform "Driver Air Mix Door-0%", "Driver Air Mix Door-50%" and "Driver Air Mix Door-100%" in "Actuation Test" with GDS.
Monitor "Air Mix Door Potentiometer-Driver" parameter in "Current Data" with GDS.
Specification : Driver Air Mix Door-0% : 6.3% / Driver Air Mix Door-50% : 49.8% / Driver Air Mix Door-100% : 94.1%
Is displayed parameter within specification?
 | ▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors ( and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace Air Mix Potentiometer and then go to "Verification of Vechicle Repair" procedure. |
