Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

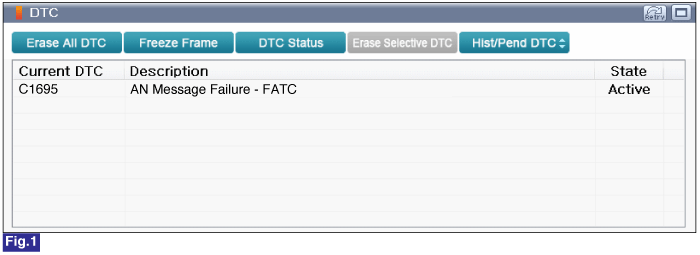

Fig.1) Diagnostic Trouble Code(DTC) is shown above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedue.

Connect GDS to Data Link Connector (DLC).

Engine "ON".

Select the "External Temperature" parameter among "Current Data".

When the External Temperature changes, Check the temperature data.

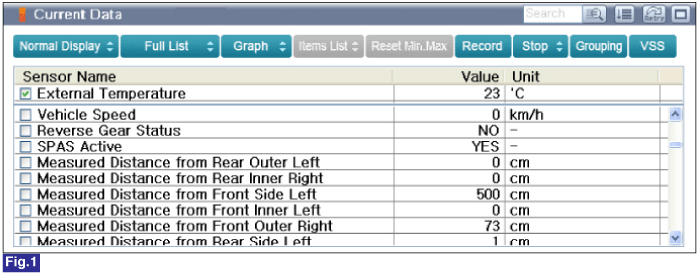

Fig.1) External Temperature

Is the parameter displayed within specifications?

	▶ Fault is intermittent caused by poor connection in FATC and SPAS ECU's connector or was repaired and SPAS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
	▶ Go to "Wiring Inspection" procedure.
