Inspection
note

Inspect the glow relay unit under the condition below. If not, glow relay unit assembly might not be operated because of glow plug heat.

●

Coolant temperature < 60°C

●

Within 30 seconds after KEY ON

1.

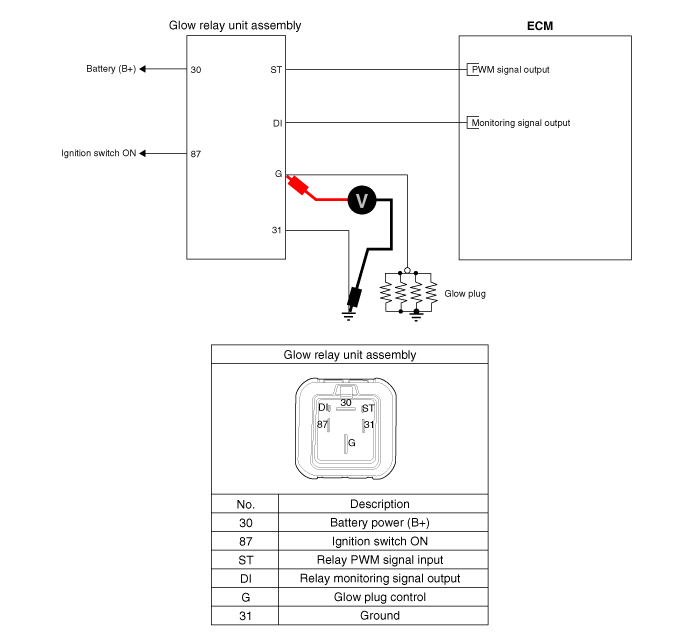

Measure the voltage between glow relay unit assebly connector "G" terminal and battery (-) terminal.

Item

Condition

Turn the ignition switch "OFF"

Turn the ignition switch "ON"

Normal

Approximately. 1 V

Battery Voltage

Abnormal

Approximately. 0 V

Approximately. 0 V

caution

Schematic Diagrams
