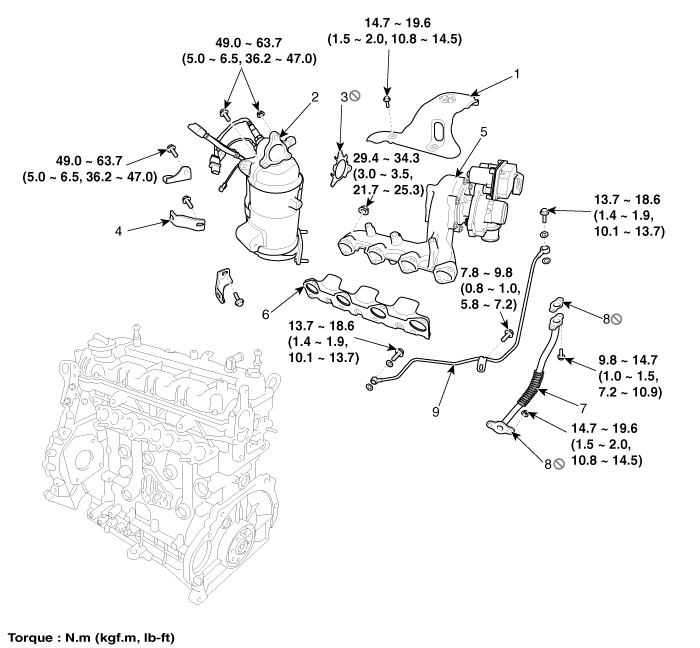

1. Heat protector

2. DPF converter

3. DPF converter gasket

4. DPF converter bracket

5. Turbocharger & exhaust manifold

6. Exhaust manifold gasket

7. Oil return pipe

8. Oil return gasket

9. Oil feed pipe

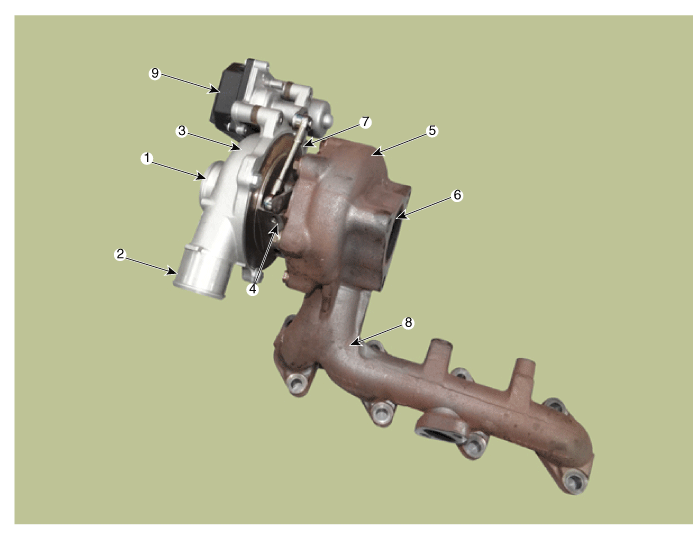

1. Compressor outlet

2. Compressor inlet

3. Compressor housing

4. Center housing

5. Turbine housing

6. Turbine outlet

7. Actuator rod

8. Turbine inlet

9. Electronic VGT control Actuator
