1.

Connect the battery negative (-) terminal.

2.

Perform the "ECM Change" procedure using GDS.

(1)

Turn the ignition switch OFF.

(2)

Connect the GDS to Data Link Connector (DLC).

(3)

Turn the igntion switch ON.

(4)

Select "Vehicle, Model Year, Engine, System".

(5)

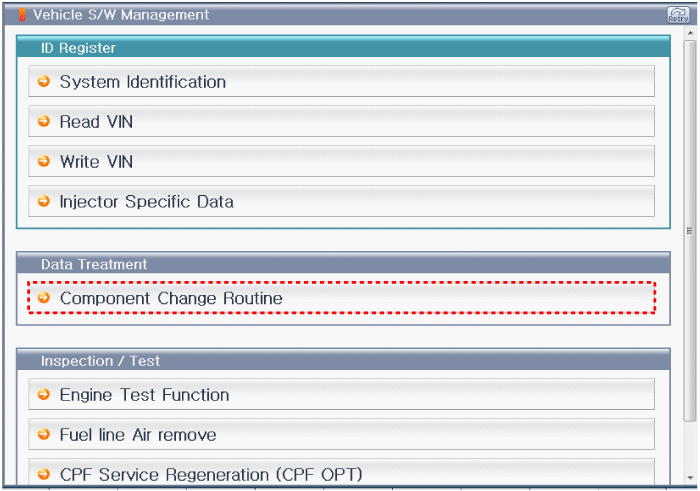

Select "Vehicle S/W Management".

(6)

Select "Component Change Routine".

(7)

Select "ECU Change".

(8)

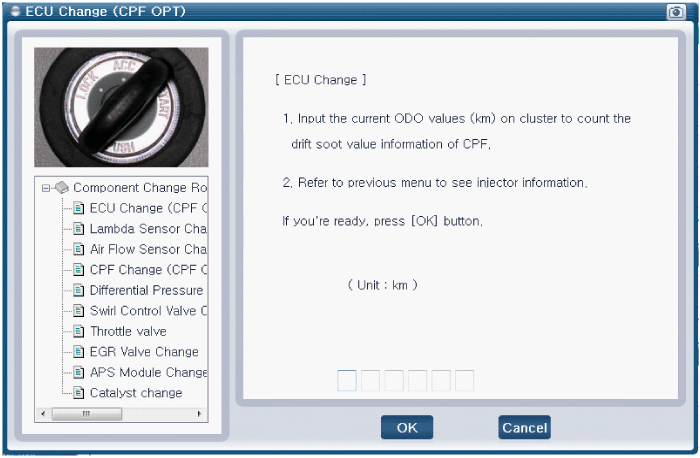

Input the mileage in the cluster.

(9)

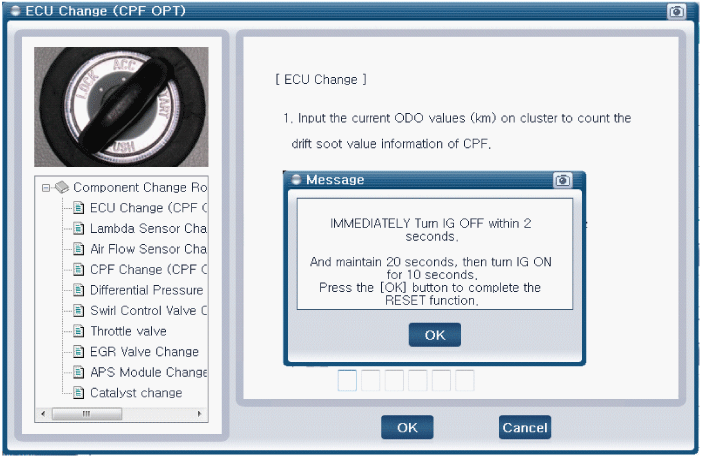

If the confirm message appears, turn the ignition switch OFF and wait for 20 seconds. And then turn the ignition switch ON.

3.

Perform "Injector Specific Data Input" procedure.

(Refer to Engine Control/Fuel System - "Injector")

4.

Perform "Key Teaching" procedure.

(Refer to Engine Control/Fuel System - "Immobilizer")
