Adjustment
Converter Change
note
●

After replacing the Converter , MUST perform the "Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.

1.

Turn the ignition switch OFF.

2.

Connect the GDS to Data Link Connector (DLC).

3.

Turn ignition switch ON.

4.

Select "Vehicle, Model year, Engine, System".

5.

Select "Vehicle S/W Management".

6.

Select "Component Change Routine".

7.

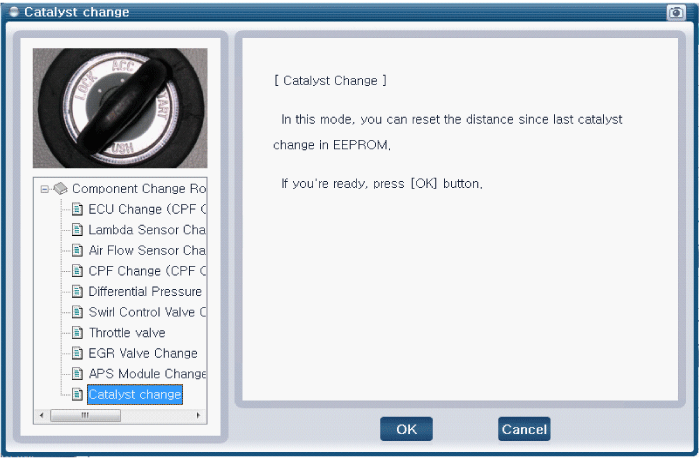

Select "Converter Change".

8.

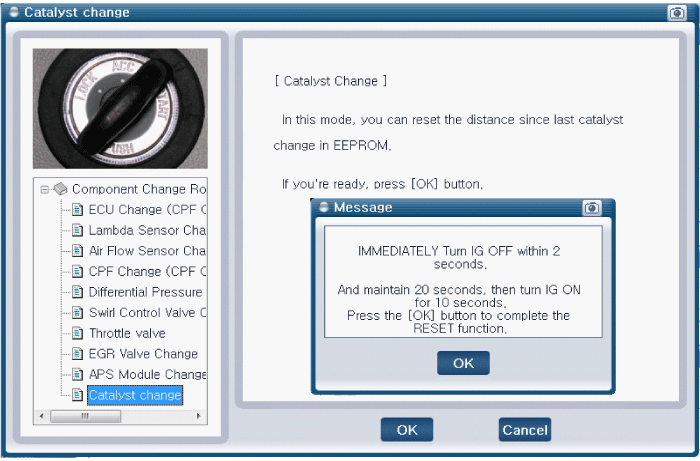

Turn the ignition switch OFF and Turn the ignition switch ON again in 20 seconds.

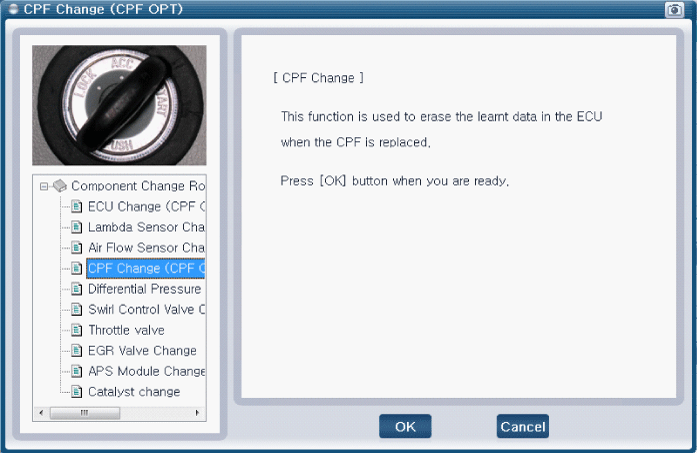

DPF Change
note
●

After replacing the DPF assembly, MUST perform the "Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.

1.

Turn the ignition switch OFF.

2.

Connect the GDS to Data Link Connector (DLC).

3.

Turn the ignition switch ON.

4.

Select "Vehicle, Model year, Engine, System".

5.

Select "Vehicle S/W Management".

6.

Select "Component Change Routine".

7.

Select "DPF Change".

8.

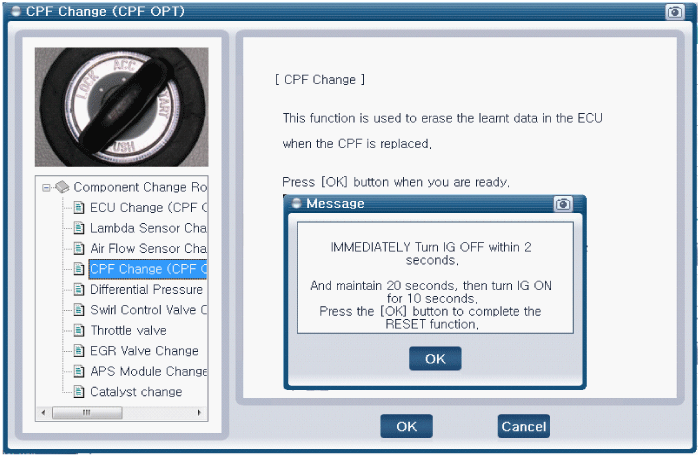

Turn the ignition switch OFF and Turn the ignition switch ON again in 20 seconds.
