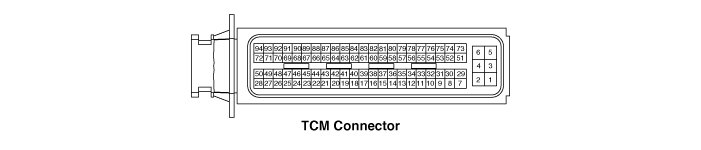

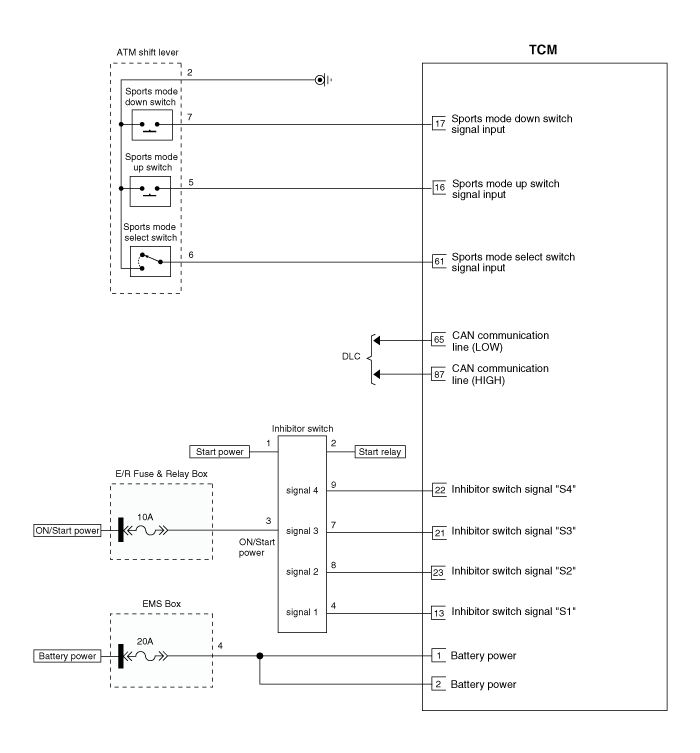

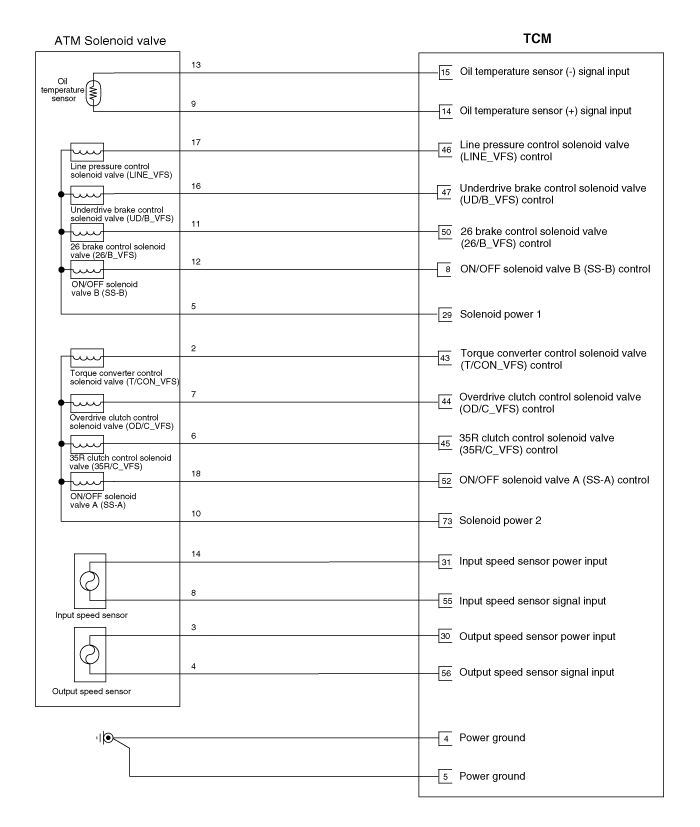

Pin | Description | Pin | Description |
1 | Battery power | 29 | Solenoid power 1 |
2 | Battery power | 30 | Output speed sensor power |
3 | Ignition switch | 31 | Input speed sensor power |
4 | Power ground | 43 | Torque converter control solenoid valve (T/CON_VFS) |
5 | Power ground | 44 | Overdrive clutch control solenoid valve (OD/C_VFS) |
8 | ON/OFF solenoid valve B(SS-B) | 45 | 35R clutch control solenoid valve (35R/C_VFS) |
9 | Shift lock solenoid | 46 | Line pressure control solenoid valve (LINE_VFS) |
13 | Inhibitor switch signal "S2" | 47 | Underdrive brake control solenoid valve (UD/B_VFS) |
14 | Oil temperature sensor (+) | 52 | ON/OFF solenoid valve A (SS-A) |
15 | Oil temperature sensor (-) | 55 | Input speed sensor signal |
16 | Sports mode up switch | 56 | Output speed sensor signal |
17 | Sports mode down switch | 61 | Sports mode select switch |
21 | Inhibitor switch signal "S3" | 65 | CAN communication line (LOW) |
22 | Inhibitor switch signal "S4" | 73 | Solenoid power 2 |
23 | Inhibitor switch signal "S1" | 87 | CAN communication line (HIGH) |
Pin | Description | Condition | Inoutput value | |
Type | Level | |||
23 | Inhibitor switch 1 | ON | Digital | 9V < Battery voltage level < 16V |
OFF | 0V/Battery voltage level | |||
13 | Inhibitor switch 2 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
21 | Inhibitor switch 3 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
22 | Inhibitor switch 4 | ON | 9V < Battery voltage level < 16V | |
OFF | 0V/Battery voltage level | |||
14 | Oil temperature sensor signal (+) | - | Analog | Min.: 0 V |
15 | Oil temperature sensor signal (-) | - | Max.: 5.1 V | |
61 | Sports mode select switch | ON | Digital | Max. Low level threshold value ≤ 2.0 V |
16 | Sports mode up switch | OFF | Min. High level threshold value ≥ 4.0 V | |
17 | Sports mode down switch | OFF |
| |
56 | Output speed sensor signal | Revolution | Pulse | Max. frequency : 9 kHz |
Min. frequency: > 0 Hz | ||||
55 | Input speed sensor signal | Revolution | Min. High Pulse: ≥ 25 µs | |
Min. Low Pulse: ≥ 25 µs | ||||
29 | Solenoid power 1 | - | Output |
|
46 | Line pressure control solenoid valve (LINE_VFS) | Variable duty | VFS | Max. Output current (TCM): 850 mA |
47 | Underdrive brake control solenoid valve (UD/B_VFS) | Variable duty | Min. Output current (TCM): 50 mA | |
50 | 26 brake control solenoid valve (26/B_VFS) | Variable duty |
| |
73 | Solenoid power 2 | - | Output |
|
43 | Torque converter control solenoid valve (T/CON_VFS) | Variable duty | VFS | Max. Output current (TCM): 850 mA |
44 | Overdrive clutch control solenoid valve (OD/C_VFS) | Variable duty | Min. Output current (TCM): 50 mA | |
45 | 35R clutch control solenoid valve (35R/C_VFS) | Variable duty |
| |
52 | ON/OFF solenoid valve A (SS-A) | ON/OFF | PWM | Output current : 0.7A |
8 | ON/OFF solenoid valve B (SS-B) | ON/OFF | ||
