5.
Install in the reverse order of removal.
caution
●
Replace any damaged clips.

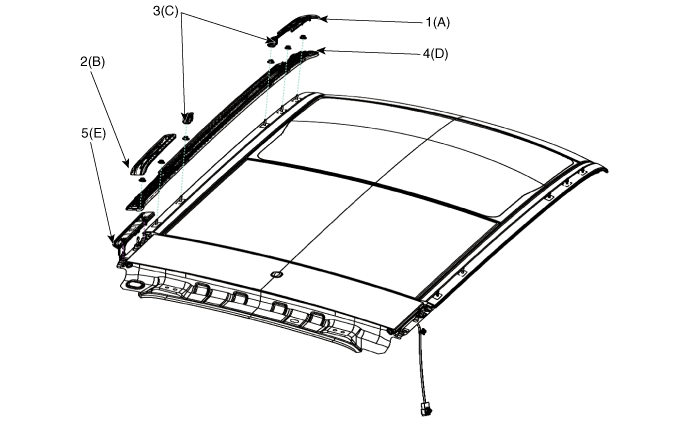

1. Roof rack front cover 2. Roof rack rear cover 3. Roof rack side rail cap | 4. Roof rack assembly 5. Rear roof garnish |
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Remove the roof rack front cover (A) and roof rack rear cover (B).
Remove the roof rack side rail cap (C).
After loosening the mounting nuts, then remove the roof rack assembly (D).
Tightening torque :
3.9 ~ 4.4 N.m ( 0.4 ~ 0.45 kgf.m, 2.9 ~ 3.3 lb-ft )
Using a screwdriver or remover, remove the rear roof garnish (E).
Install in the reverse order of removal.
Replace any damaged clips.
1. Roof rack front cover 2. Roof rack rear cover 3. Roof rack side rail cap | 4. Roof rack assembly 5. Rear roof garnish |
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Remove the roof rack front cover (A) and roof rack rear cover (B).
Remove the roof rack side rail cap (C).
After loosening the mounting nuts, then remove the roof rack assembly (D).
Tightening torque :
3.9 ~ 4.4 N.m ( 0.4 ~ 0.45 kgf.m, 2.9 ~ 3.3 lb-ft )
Using a screwdriver or remover, remove the rear roof garnish (E).
Using a screwdriver or remover, remove the front roof garnish (F).
Install in the reverse order of removal.
Replace any damaged clips.

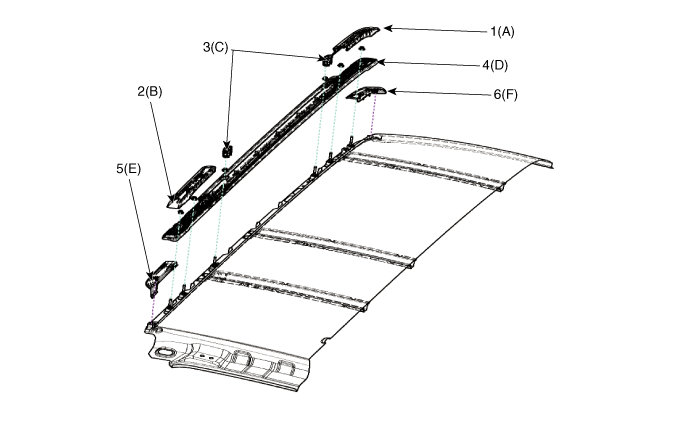

1. Roof rack front cover 2. Roof rack rear cover 3. Roof rack side rail cap | 4. Roof rack assembly 5. Rear roof garnish 6. Front roof garnish |
