Components

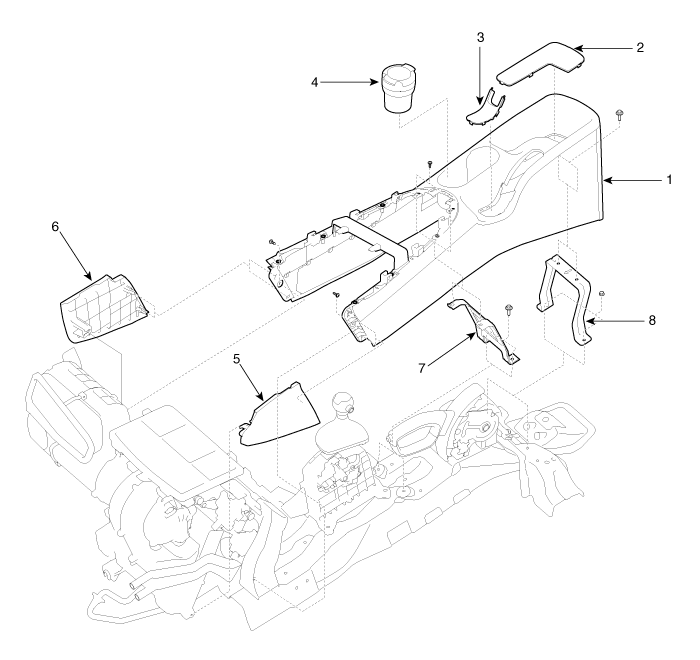

[M/T]

1. Floor console assembly

2. Hole cover

3. Parking brake cover

4. Ash tray

5. Console side cover [LH]

6. Console side cover [RH]

7. Console center mounting bracket

8. Console rear mounting bracket

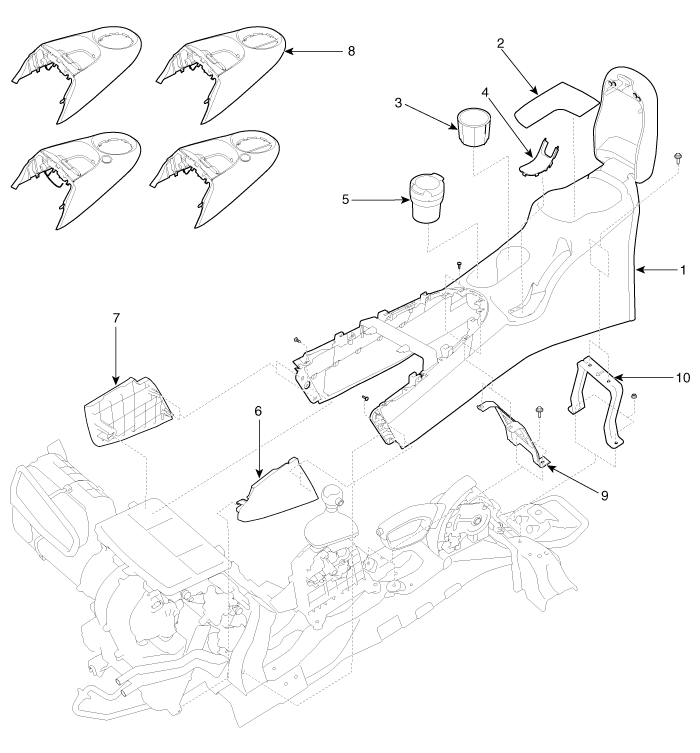

[A/T]

1. Floor console assembly

2. Hole cover

3. Cup holder supplement

4. Parking brake cover

5. Ash tray

6. Console side cover [LH]

7. Console side cover [RH]

8. Console upper cover

9. Console center mounting bracket

10. Console rear mounting bracket
