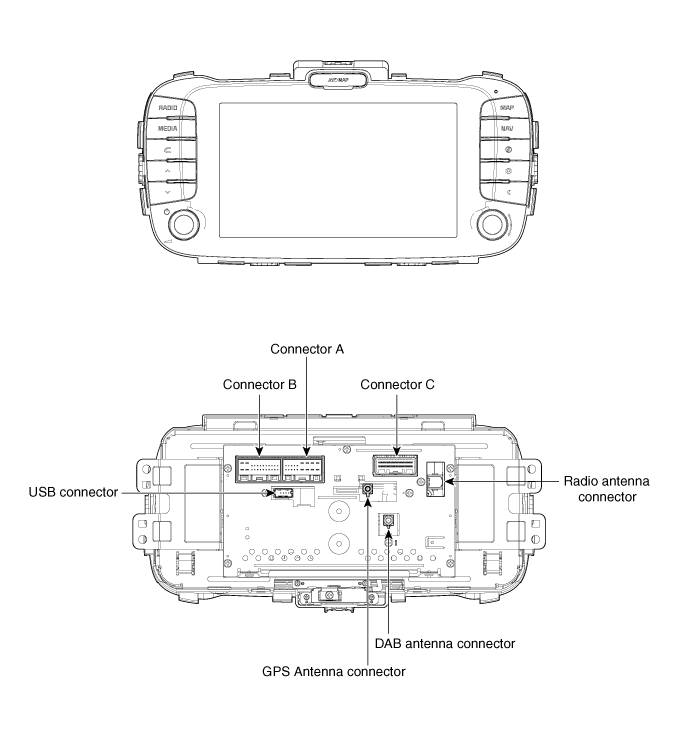

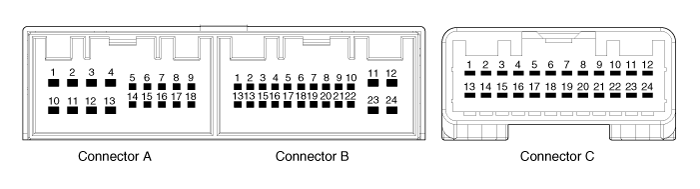

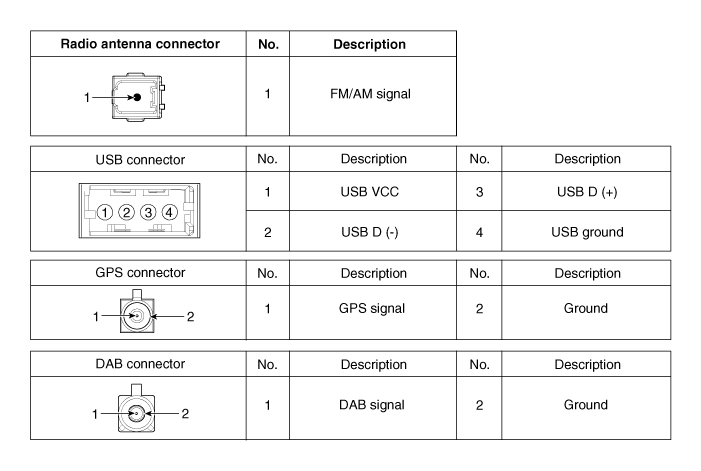

No. | Connector A | Connector B | Connector C |
1 | - | MM CAN high | C CAN (-) |
2 | - | - | C CAN (+) |
3 | - | Parking | - |
4 | - | Steering remocon | - |
5 | SPDIF ground | - | - |
6 | SPDIF (+) | - | - |
7 | ALT L | AUX video | - |
8 | Illumination (+) | AUX right input | - |
9 | R position | AUX ground | - |
10 | - | MIC (+) | - |
11 | - | Battery (+) | B CAN (+) |
12 | - | Battery (+) | B CAN (-) |
13 | - | MM CAN low | - |
14 | Ignition 1 | Auto light | Airbag |
15 | SPDIF (-) | P position | - |
16 | Door unlock | Speed | Navigation voice (-) |
17 | Illumination (-) | Remocon ground | Navigation voice (+) |
18 | Remote antenna | ACC | Door open |
19 |
| AUX video ground | - |
20 | AUX DETECT | - | |
21 | AUX left input | Ground | |
22 | MIC (-) | Video ground | |
23 | Ground | Camera video input | |
24 | Ground | Camera battery (+) |
