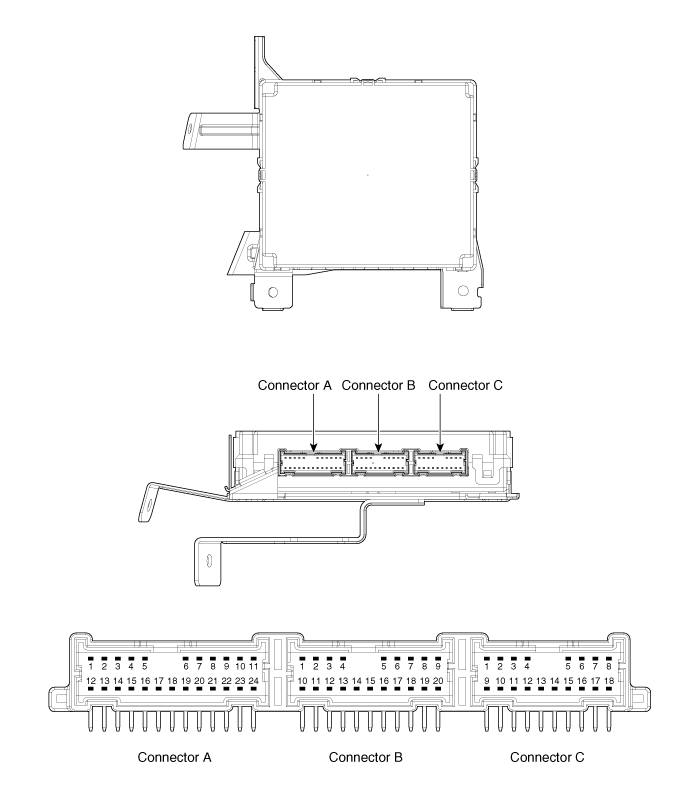

No. | Connector A | Connector B | Connector C |
1 | V_BAT CPU | Assistant side antenna ground | Immobilizer antenna ground |
2 | V_BAT Load | Assistant side antenna power | Immobilizer antenna power |
3 | Ignition 1 | Driver side antenna ground | ESCL unlock |
4 | Ignition 2 relay | Driver side antenna power | ESCL enable |
5 | Ignition 1 relay | Wheel speed | - |
6 | - | P position | SSB LED ON |
7 | ESCL COM | - | SSB LED ACC |
8 | EMS COM | C CAN low | SSB illumination power |
9 | - | C CAN high | - |
10 | B CAN high | Interior 1 antenna ground | - |
11 | B CAN low | Interior 1 antenna power | - |
12 | ACC | Bumper antenna ground | - |
13 | Ignition 2 | Bumper antenna power | Stop lamp fuse |
14 | ACC relay | Interior 2 antenna ground | Brake switch |
15 | Starter relay | Interior 2 antenna power | - |
16 | Start feedback | - | Immobilizer indicator |
17 | ESCL battery | RPM | Exterior buzzer |
18 | - | - | SSB illumination ground |
19 | - | SSB switch 2 |
|
20 | Assistant toggle button | SSB switch 1 | |
21 | Driver toggle button |
| |
22 | ESCL ground | ||
23 | Power ground 2 | ||
24 | Power ground 1 |
