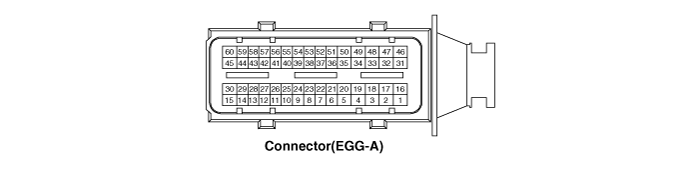

1

PCSV-C(UD)

31

ㅡ

2

Ground transwission #2

32

PCSV-B(24 Brake)

3

ㅡ

33

ㅡ

4

ㅡ

34

ㅡ

5

ㅡ

35

ㅡ

6

ㅡ

36

ㅡ

7

ㅡ

37

ㅡ

8

Input lever position R

38

ㅡ

9

Input brake switch TCU

39

Voltage supply for transmission

(Output stages #1)

10

ㅡ

40

ㅡ

11

Input lever position D

41

OD off request form ACC

12

Input lever position P

42

Auto cruise ON/OFF signal

13

ㅡ

43

ㅡ

14

Input lever position N

44

ㅡ

15

ㅡ

45

Input transmission oil temperature

16

PCSV-A(OD&LR)

46

PCSV-D(DCCSV)

17

Ground transwission #1

47

ON/OFF solenoid

18

Ground transwission #3

48

19

ㅡ

49

Lineat solenoid TCU

20

ㅡ

50

Input permanent battery voltage

21

ㅡ

51

Low gear inforrnation to acc

22

ㅡ

52

Gear information to meter cluster

23

ㅡ

53

Output vehicle speed

24

ㅡ

54

Voltage supply for transmission

(Output stages #2)

25

ㅡ

55

Voltage supply for transmission

(Output stages #3)

26

ㅡ

56

27

ㅡ

57

Signal for input speed

(Signal for NTU)

28

ㅡ

58

GND for input speed

(GND for NTU)

29

ㅡ

59

Signal for output speed

(Signal for NAB)

30

Sensor ground for transmission oil temperature sensor

60

GND for output speed

(GND for NAB)
