Terminal and Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

▶ Repair as necessary and go to "Verification vehicle Repair" procedure.

▶ Go to "Power Circuit Inspection" procedure.

Power Circuit Inspection
1.

Connect "A/T SOLENOID VALVE" connector and install device for measuring wave form.

2.

Turn on the Engine and operate Damper clutch.

3.

Measure wave form between "PCSV-A(OD&LR)" teminal of the sensor harness connector and chassis ground.

note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension

Wave form of OD/LR SOLENOID

Fig 1) "P,N"

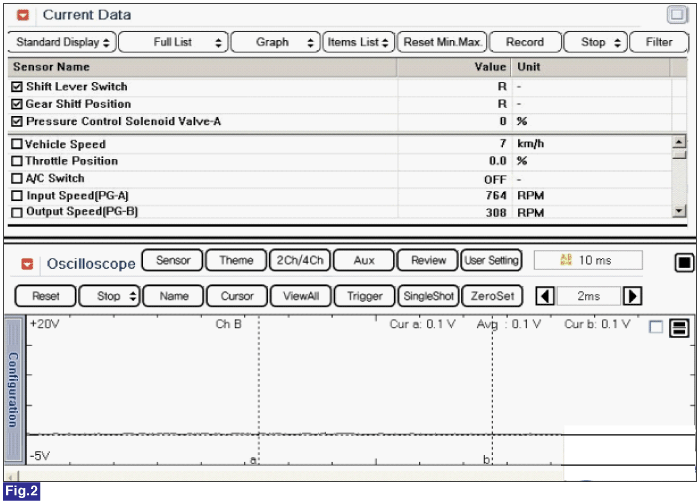

Fig 2) "R"

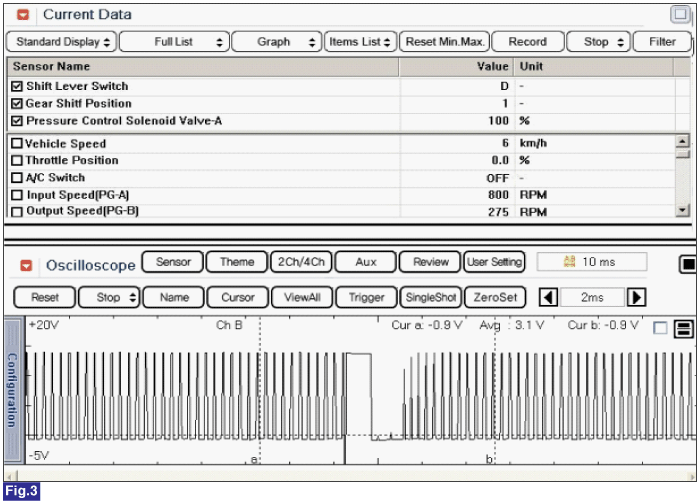

Fig 3) "D Range 1st" gear

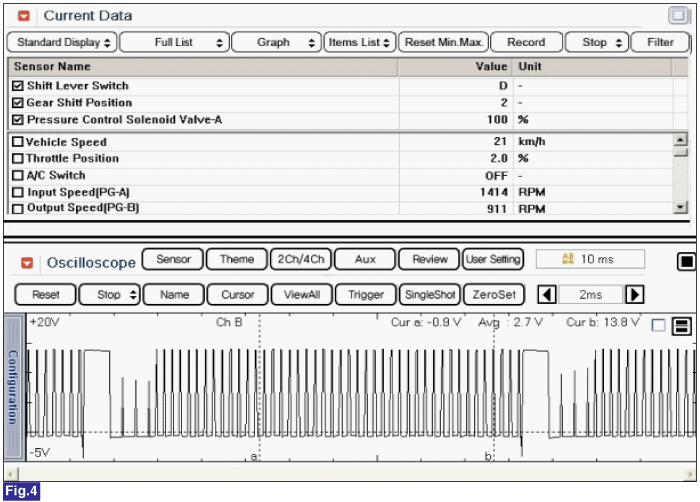

Fig 4) "D Range 2nd" gear

Fig 5) "D Range 3rd" gear

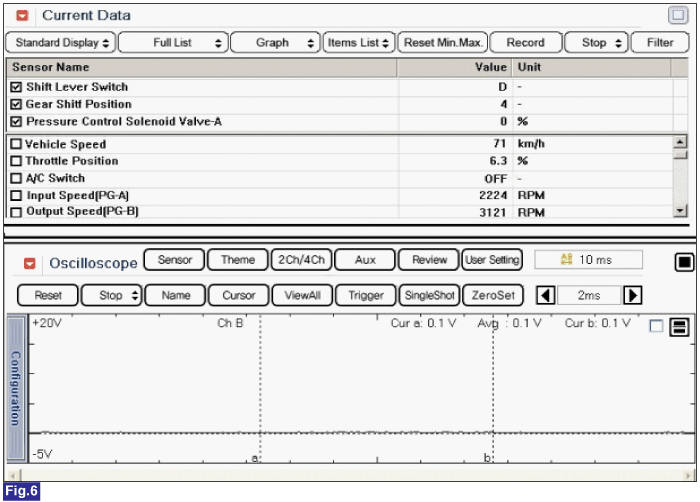

Fig 6) "D Range 4th" gear

4.

Is measured normally operating wave form?

▶ Go to "Signal circuit inspection" procedure.

▶ Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure.

Signal Circuit Inspection
1.

Check Signal Circuit Open Inspection

(1)

Ignition "OFF".

(2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

(3)

Measure resistance between "PCSV-A(OD&LR)" terminal of the ATM SOLENOID VALVE harness connector and "PCSV-A(OD&LR)" terminal of the PCM/TCM harness connector.

Specification : Approx. 0 Ω

note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension
(4)

Is resistance within specifications?

▶ Go to "Check signal circuit short Inspection" procedure.

▶ Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure.

2.

Check Signal Circuit Short Inspection

(1)

Ignition "OFF".

(2)

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

(3)

Measure resistance "PCSV-A(OD&LR)" between terminal of the ATM SOLENOID VALVE harness and chassis ground.

Specification : Infinite

note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension
(4)

Is resistance within specifications?

▶ Go to "Ground circuit Inspection" procedure,

▶ Check for short to ground in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure.

Ground Circuit Inspection
1.

Ignition "OFF"".

2.

Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3.

Measure resistance between "LINEAR SOLENOID" terminal of the ATM SOLENOID VALVE harness connector and "LINEAR SOLENOID" terminal of the PCM/TCM harness connector.

Specification : Approx. 0 Ω

note
To view Flash content, you need to install the appropriate browser extension
note
To view Flash content, you need to install the appropriate browser extension
4.

Is resistance within specifications?

▶ Go to "Component Inspection" procedure.

▶ Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure.
